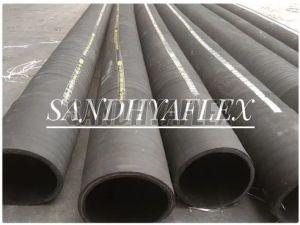

Sanhdyaflex Cement Feeding Rubber Hose

1,700.00 / 1 Meter

6 Meter (MOQ)

Edit

Business Type	Manufacturer, Exporter, Supplier
Hardness	55 To 60 Shore A
Shape	Round
Finishing	Polished
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Material

Rubber

Brand Name

sandhyaflex

Color

Black

Pressure

10-15kgs

Usage

Industrial Use

Unit Length

3-15 m

Temperature

-10 to 100 Degree C

Thickness

12 to 15mm

Weight

120kg/Mtr

I Deal In

New Only

Product Code

Cement Feeding Rubber Hose

Port

Mumbai

Payment Terms

D/A

Delivery Time

5-7days

Packaging Details

SANDHYAFLEX Fly Ash Rubber Hose / Cement Feeding Rubber hose / Bulker Unloading Rubber Hose / / Bulker Air Rubber Hose
Working Pressure 10bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr Fix Flange per side Swivel Flange per side SS Flange per side
1 3 76 4Kg 12kg 1200 900 1200 2700
2 4 102 5kg 14kg 1590 1100 1500 3300
3 5 127 7Kg 15 kg 2010 1200 1600 3600
4 6 152.4 9kg 19kg 2900 1425 1925 4300

SANDHYAFLEX Water Suction and Discharge Rubber Hose
Working Pressure 10bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr Fix Flange per side Swivel Flange per side SS Flange per side
1 3 76 4Kg 12kg 960 900 1200 2700
2 4 102 5kg 14kg 1410 1100 1500 3300
3 5 127 7Kg 15 kg 1830 1200 1600 3600
4 6 152.4 9kg 19kg 2520 1425 1925 4300
5 8 200 12kg 37kg 3900 2800 3300 8400
8 10 250 17kg 41kg 5460 3800 4600 11500
9 12 300 21kg 45kg 7800 4750 5750 14500
10 14 350 11400 6500 7500 19500
11 16 400 14400 8000 9000 24000

SANDHYAFLEX Slurry Rubber hose /Mining Rubber Hose/Mud Rubber Hose/ Dewatering Rubber Hose
Working Pressure 10bar and 25Bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr WP 10Bar Rate/Mtr WP 25 Bar Fix Flange per side Swivel Flange per side SS Flange per side
1 6 152.4 9kg 19kg 3450 4025 1425 1925 4300
2 8 203.2 12kg 37kg 5175 6325 2800 3300 8400
3 10 254 17kg 41kg 7475 9200 3800 4600 11500
s4 12 304.8 21kg 45kg 10925 13515 4750 5750 14500

Flange Dimension as per ASA 160# ANSI 16.5ASA 160# ANSI 16.5
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 190.5 152.4 4 19
2 4” (100mm) 229 190.5 8 19
3 5” (125mm) 254 215.9 8 22.2
4 6’(150mm) 279.4 241.3 8 22.2
5 8” (200mm) 342.9 298.4 8 22.2
6 10” (250mm) 406.9 361.9 12 25.4
7 12” (300mm) 482.6 431.8 12 25.4
8 14” (350mm) 533.4 476.2 12 28.6
s9 16”(400mm) 596.9 539.7 16 28.6
10 18” (450mm) 635 577.8 16 31.7
11 20”(500mm) 698.5 635 20 31.7
12 24”(600mm) 812.8 749.3 20 34.9

Flange Dimension as per Table D
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 184 146 4 16
2 4” (100mm) 216 178 8 16
3 5” (125mm) 254 210 8 16
4 6’(150mm) 279 235 8 19

Flange Dimension as per Table E
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 184 146 4 16
2 4” (100mm) 216 178 8 16
3 5” (125mm) 254 210 8 16
4 6’(150mm) 279 235 8 19

Export Packing Date 01.01.2025
Dimension in CBM
Rubber Hose
Color Block
S No Size ID of
Rubber Hose Rubber Hose
Weight/mtrapprox Flange with Nipple Weight
01 Set Flange OD as per ASA 150# Length 6Mtr Width Flagge OD Height Flange OD CBM Weight/6mtr Hose in Kg
1 3” (75mm) 4kg 12 kg 190.5mm 6 0.191 0.191 0.219 36kg
2 4”(100mm) 5kg 13kg 229mm 6 0.229 0.229 0.315 43kg
3 5” (125mm) 7kg 14kg 254mm 6 0.254 0.254 0.387 56kg
4 6” (150mm) 9kg 19 kg 279.4mm 6 0.280 0.280 0.471 73kg
5 8”(200mm) 12kg 37kg 342.9 6 0.243 0.243 0.704 109kg
6 10” (250mm) 16kg 41 kg 406.9 6 0.407 0.407 0.994 137kg
7 12(300mm) 20Kg 45kg 482.6 6 0.483 0.483 1.400 165kg
8 14” ( 350mm) 6 0.534 0.534 1.709
9 16” (400mm) 6 0.597 0.597 2.1384
10 18” (450mm) 6 0.635 0.635 2.419
11 20” (500mm) 6 0.699 0.699 2.932
12 24”(600mm) 6 0.813 0.813 3.968

A slurry rubber hose is a type of hose specifically designed to transport abrasive and thick fluids, known as slurries, in industries like mining, construction, or wastewater treatment. Slurries typically consist of a mixture of water and solid particles, such as sand, gravel, or other sediments.

Features of Slurry Rubber Hoses:

Durability: These hoses are made from high-quality rubber compounds that provide excellent resistance to abrasion, wear, and impact. This makes them ideal for moving slurries, which can be harsh and abrasive.
Flexibility: Slurry rubber hoses maintain flexibility even under harsh working conditions, allowing for easy installation and movement in tight spaces.
High Pressure Resistance: Slurry hoses are designed to withstand high-pressure environments, which is crucial in many slurry transfer applications.
Reinforced Construction: They often have multiple layers of reinforcement, such as fabric or steel wire, to enhance strength and prevent collapse under pressure.
Chemical Resistance: Depending on the materials used in the hose, slurry rubber hoses can be resistant to a wide range of chemicals that may be present in the slurry mix.

Applications:

Mining and Mineral Processing: Transporting minerals, ores, and other solids suspended in water.
Construction: Pumping concrete or other thick mixtures.
Wastewater Treatment: Moving slurry-like waste materials in various stages of treatment.
Agriculture: Transporting slurry materials like manure or liquid fertilizers.

Would you like more specific information on a certain type or manufacturer of slurry rubber hoses?
