50 Meter Bridge Strip Seal Expansion Joint

A bridge strip seal expansion joint is a type of expansion joint used in bridges and other structures to accommodate movement caused by temperature variations, seismic activity, and other factors. Expansion joints are crucial in preventing damage to structures by allowing controlled movement and absorbing the stresses generated.

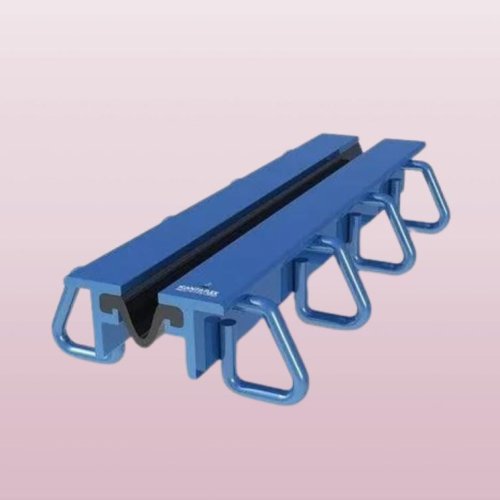

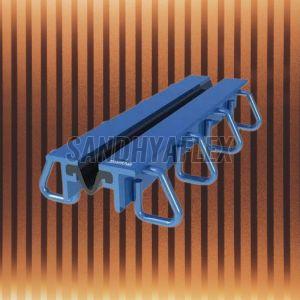

The strip seal expansion joint typically consists of steel edge profiles and a rubber or neoprene sealing element. Here's a breakdown of its key components:
1. **Steel Edge Profiles:** These are usually two parallel steel edge profiles that run along the length of the joint on either side. These profiles provide support and guide for the movement of the joint.
2. **Sealing Element:** The sealing element is a flexible material, often made of rubber or neoprene. It is placed between the steel edge profiles and ensures a watertight seal while allowing for movement. This material should be durable, weather-resistant, and capable of accommodating various types of movement.
3. **Anchor Systems:** The expansion joint is anchored to the bridge structure to prevent unintentional movement or displacement. Anchors are usually positioned at intervals along the length of the joint.
4. **Cover Plates:** In some designs, cover plates may be used to protect the sealing element from debris, water, and other environmental factors. These plates can also provide a smoother surface for vehicles to traverse.
The strip seal expansion joint allows for both translational and rotational movement, providing flexibility for the structure during expansion and contraction. This movement helps to reduce stress on the bridge components and prevents potential damage that could occur if the expansion and contraction were restricted.
