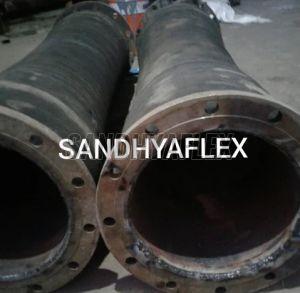

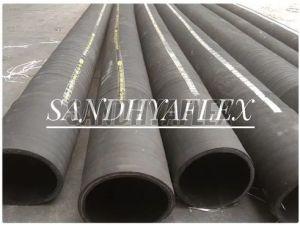

12"Id 25 Bar Slurry Rubber Hose

9,500.00 / 1 Meter

6 Meter (MOQ)

Edit

Business Type	Manufacturer, Exporter, Supplier
Material	Rubber
Usage	Industrial Use
Specialities	Perfect Finish, Easy To Use
Click to view more

Preferred Buyer From

Location

Worldwide

Product Details

Hose Dimension (mm)

100-200mm

Inner Diameter

12mm

Overall Height

130mm

Thickness (mm)

10mm

Type

Steam Hose

Finishing

Coated

Shape

Square

Product Code

Slurry Rubber Hose

Port

Mumbai

Payment Terms

D/A

Delivery Time

5-7days

Packaging Details

SANDHYAFLEX Fly Ash Rubber Hose / Cement Feeding Rubber hose / Bulker Unloading Rubber Hose / / Bulker Air Rubber Hose
Working Pressure 10bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr Fix Flange per side Swivel Flange per side SS Flange per side
1 3 76 4Kg 12kg 1200 900 1200 2700
2 4 102 5kg 14kg 1590 1100 1500 3300
3 5 127 7Kg 15 kg 2010 1200 1600 3600
4 6 152.4 9kg 19kg 2900 1425 1925 4300

SANDHYAFLEX Water Suction and Discharge Rubber Hose
Working Pressure 10bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr Fix Flange per side Swivel Flange per side SS Flange per side
1 3 76 4Kg 12kg 960 900 1200 2700
2 4 102 5kg 14kg 1410 1100 1500 3300
3 5 127 7Kg 15 kg 1830 1200 1600 3600
4 6 152.4 9kg 19kg 2520 1425 1925 4300
5 8 200 12kg 37kg 3900 2800 3300 8400
8 10 250 17kg 41kg 5460 3800 4600 11500
9 12 300 21kg 45kg 7800 4750 5750 14500
10 14 350 11400 6500 7500 19500
11 16 400 14400 8000 9000 24000

SANDHYAFLEX Slurry Rubber hose /Mining Rubber Hose/Mud Rubber Hose/ Dewatering Rubber Hose
Working Pressure 10bar and 25Bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr WP 10Bar Rate/Mtr WP 25 Bar Fix Flange per side Swivel Flange per side SS Flange per side
1 6 152.4 9kg 19kg 3450 4025 1425 1925 4300
2 8 203.2 12kg 37kg 5175 6325 2800 3300 8400
3 10 254 17kg 41kg 7475 9200 3800 4600 11500
s4 12 304.8 21kg 45kg 10925 13515 4750 5750 14500

Flange Dimension as per ASA 160# ANSI 16.5ASA 160# ANSI 16.5
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 190.5 152.4 4 19
2 4” (100mm) 229 190.5 8 19
3 5” (125mm) 254 215.9 8 22.2
4 6’(150mm) 279.4 241.3 8 22.2
5 8” (200mm) 342.9 298.4 8 22.2
6 10” (250mm) 406.9 361.9 12 25.4
7 12” (300mm) 482.6 431.8 12 25.4
8 14” (350mm) 533.4 476.2 12 28.6
s9 16”(400mm) 596.9 539.7 16 28.6
10 18” (450mm) 635 577.8 16 31.7
11 20”(500mm) 698.5 635 20 31.7
12 24”(600mm) 812.8 749.3 20 34.9

Flange Dimension as per Table D
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 184 146 4 16
2 4” (100mm) 216 178 8 16
3 5” (125mm) 254 210 8 16
4 6’(150mm) 279 235 8 19

Flange Dimension as per Table E
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 184 146 4 16
2 4” (100mm) 216 178 8 16
3 5” (125mm) 254 210 8 16
4 6’(150mm) 279 235 8 19

Export Packing Date 01.01.2025
Dimension in CBM
Rubber Hose
Color Block
S No Size ID of
Rubber Hose Rubber Hose
Weight/mtrapprox Flange with Nipple Weight
01 Set Flange OD as per ASA 150# Length 6Mtr Width Flagge OD Height Flange OD CBM Weight/6mtr Hose in Kg
1 3” (75mm) 4kg 12 kg 190.5mm 6 0.191 0.191 0.219 36kg
2 4”(100mm) 5kg 13kg 229mm 6 0.229 0.229 0.315 43kg
3 5” (125mm) 7kg 14kg 254mm 6 0.254 0.254 0.387 56kg
4 6” (150mm) 9kg 19 kg 279.4mm 6 0.280 0.280 0.471 73kg
5 8”(200mm) 12kg 37kg 342.9 6 0.243 0.243 0.704 109kg
6 10” (250mm) 16kg 41 kg 406.9 6 0.407 0.407 0.994 137kg
7 12(300mm) 20Kg 45kg 482.6 6 0.483 0.483 1.400 165kg
8 14” ( 350mm) 6 0.534 0.534 1.709
9 16” (400mm) 6 0.597 0.597 2.1384
10 18” (450mm) 6 0.635 0.635 2.419
11 20” (500mm) 6 0.699 0.699 2.932
12 24”(600mm) 6 0.813 0.813 3.968

A slurry rubber hose is a type of hose specifically designed to transport abrasive and thick fluids, known as slurries, in industries like mining, construction, or wastewater treatment. Slurries typically consist of a mixture of water and solid particles, such as sand, gravel, or other sediments.

Features of Slurry Rubber Hoses:

Durability: These hoses are made from high-quality rubber compounds that provide excellent resistance to abrasion, wear, and impact. This makes them ideal for moving slurries, which can be harsh and abrasive.
Flexibility: Slurry rubber hoses maintain flexibility even under harsh working conditions, allowing for easy installation and movement in tight spaces.
High Pressure Resistance: Slurry hoses are designed to withstand high-pressure environments, which is crucial in many slurry transfer applications.
Reinforced Construction: They often have multiple layers of reinforcement, such as fabric or steel wire, to enhance strength and prevent collapse under pressure.
Chemical Resistance: Depending on the materials used in the hose, slurry rubber hoses can be resistant to a wide range of chemicals that may be present in the slurry mix.

Applications:

Mining and Mineral Processing: Transporting minerals, ores, and other solids suspended in water.
Construction: Pumping concrete or other thick mixtures.
Wastewater Treatment: Moving slurry-like waste materials in various stages of treatment.
Agriculture: Transporting slurry materials like manure or liquid fertilizers.

Would you like more specific information on a certain type or manufacturer of slurry rubber hoses?
