| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor |
| Working Pressure | 10 To 25 Kg/cm2 |
| Temperature (Deg. Celsius) | 70 |
| Hardness | 60 Shore |
| Click to view more | |
Product Details
Reinforcement
Wire And Fabric
Bend Radius
1000mm
Tensile Strength
12Mpa
Packaging Type
Packing With HDPE Cover In Straigth And Coil
Hose Dimension (mm)
100-200mm
Size (Inches)
4 Inch
Usage
Industrial Use,Application - For Cement/ Plaster/ Sand placement in construction industries.Bulker Loading an
Thickness (mm)
10mm
Hose Lining
Yes
Is It Flexible
Yes
Total Carbohydrate
1 Year
No. Of Layers
4 Layer
Pressure
Medium
Fluid Type
Air
Corrosion Resistance
Yes
Shape
Round
Material
Rubber
Brand Name
Sandhyaflex
Number Of Flower
Vacuum Hose Pipe
Country of Origin
India
Size/Diameter
300mm IDx 6Mtr with Both End MS Flange as per ASA 150
Length
15 Mtr max
Material Standard
ANSI B16.5
Nominal Size
3 inch
unit Length
3-6 m
Layers
4 to 8 Layer
Model Name/Number
300NB-CFRH-SANDHYAFLEX
Pattern
Corrugated and Plain Top
Temperature
-10 to 150 Deg C
Thickness
8mm to 20mm
Weight
wieght as per dimension
I Deal In
New Only
Shock Proof
Yes
Item Code
300NB-SANDHYAFLEX-CFRSH
Product Code
CFRSH
Delivery Time
5 to 15 days
Packaging Details
Packing In coil and Stregth

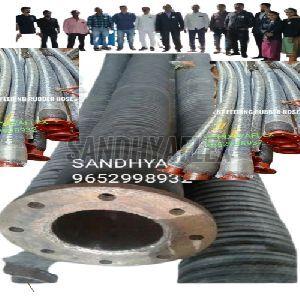

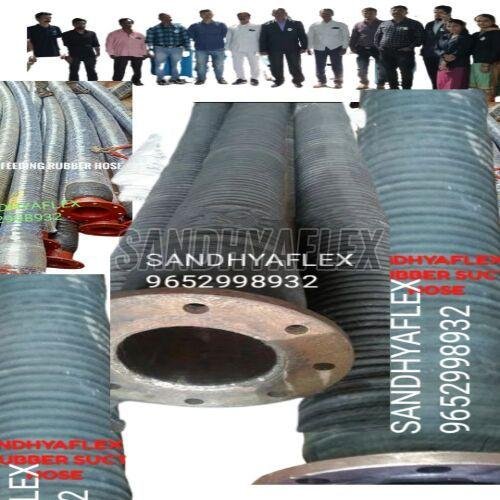

Application of Cement Hose: Cement Feeding Rubber Hose is used for spraying cement grout at irrigation projects, buildings, dams, sites, dams, bridges and roads in the hilly terrains.
Construction:
Lining: It is a uniform, seamless and extra thick tube of natural, synthetic and blend rubber compound. It offers excellent abrasion resistance which is free from air blisters, porosity and other defects.
Reinforcement: Woven textiles or braided high strength natural/ synthetic yarns that are impregnated by piles of rubber
Cover: It is a suitable rubber compound having a cloth marked finish making it weather and abrasion resistant.
Electrical Bonding: To provide electrical continuity throughout the length of the hose, a stand of copper wire is embedded in the reinforcement plies.
As per IS: IS: 13071-1991 Specification
