sandhyaflexbiz@gmail.com - GST NO. : 36GNLPS1299P1ZS
- Send Email
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader |
| Country of Origin | India |
| Brand Name | SANDHYAFLEX |
| Material | Rubber |
| Click to view more | |
Product Details
Shape
Round
Corrosion Resistance
Yes
Fluid Type
Water
No. Of Layers
4 Layer
Total Carbohydrate
1 Year
Is It Flexible
Yes
Hose Lining
Yes
Thickness (mm)
10mm
Usage
Industrial Use
Weight in Kg
10Kg
Size (Inches)
4 Inch
Working Pressure
10 Bar
Size/Diameter
2
Usage/Application
Common applications include: - Transfer of petroleum products - High-pressure suction and discharge
Length
15 Mtr Max
Single Hose Length
1 to 15 Mtr
Features
Excellent Oil and Weather Resistance
Nominal Size
2
Working Temperature
10 to 25 kg/cm2
Packaging Details
Packing in Coil and Streght
Product Code
DRSH
Application:

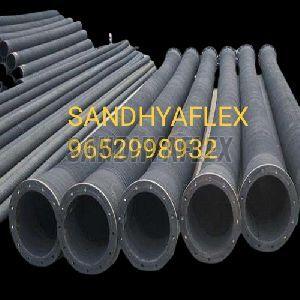

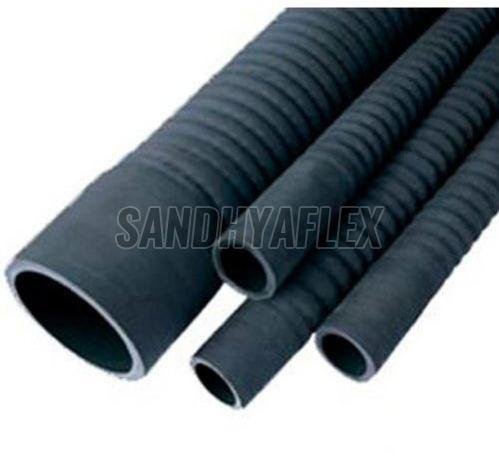

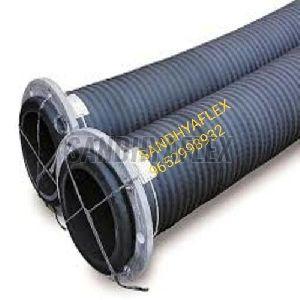

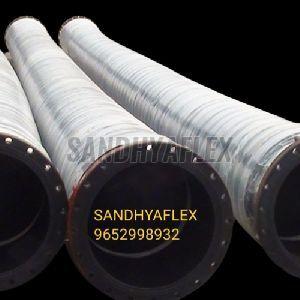

A trusted and leading manufacturer of slurry and mud rubber hose, Sandhya Flex provides highly abrasion resistant and soft natural rubber compound offerings. It has a low resistant electrical binding wire that is embedded between the reinforcement plies to enable electrical continuity along the length of the slurry and mud rubber hose. It has an excellent resistance to weather and abrasion. It finds it applications for grouting at irrigation projects, bridges and building sites among others. The range is rigorously tested to ensure the highest quality and performance. Our slurry and mud rubber hose has a robust construction and performance.
Sandhya Enterprises AN ISO:9001;2015 Certified Company is manufacture and Supplier of Slurry and Mud Rubber Hose As per IS: IS: 13071-1991 Specification:
Size: 6” ID to 10” ID
End Fitting: MS Flange as per ASA 150 # ANSI 16.5 Drilled and DIN Specification.
Working Pressure ‐ 10 to 25kg/cm2
Color: Black
Vaccum: 500 to 700hg
|
Core (Lining) |
Black colour, Synthetic rubber resistant to oil, Smooth lining of suitable rubber compounds; uniform in thickness; free from air blisters & porosity; resistant to all grade of petroleum & blended products having an aromatic hydro-carbon content not more than 25%. |
|
|
Reinforcement |
Plies of synthetic textile cords with steel helix and two cross anti static copper wire, Spiral Synthetic Fabric and High Tensile Steel Wire, Plies of synthetic cords with steel helix and anti static copper wire. Plies of rubber impregnated woven textile with helically embedded G.I.wire |
|
|
Cover |
Black colour, Synthetic rubber resistant to oil, ozone and abrasion, Cover: SBR blended, wrapped type, weather, oil, ozone, abrasion resistant.
|
|
|
Application |
Mandrel built heavy duty oil suction and discharge hose for handling grades of gasoline or petroleum oils of aromatic content upto 50% from tank truck, in dispensing station etc, during winter/summer seasons and withstands full vacuum, Suitable for suction and delivery of petroleum and petroleum products having aromatic content not greater than 50%. Designed for suction and discharge use on various petroleum products with upto 50% aromatic content, whether in plant or on tankers. Is suitable for handling unleaded fuels and hydraulic oils in return lines and wet diesel exhaust. |
