Bridge Strip Seal Expansion Joint

A bridge strip seal expansion joint is a type of expansion joint used in bridges and other structures to accommodate movement caused by temperature variations, seismic activity, and other factors. Expansion joints are crucial in preventing damage to structures by allowing controlled movement and absorbing the stresses generated.
The strip seal expansion joint typically consists of steel edge profiles and a rubber or neoprene sealing element. Here's a breakdown of its key components:
1. **Steel Edge Profiles:** These are usually two parallel steel edge profiles that run along the length of the joint on either side. These profiles provide support and guide for the movement of the joint.
2. **Sealing Element:** The sealing element is a flexible material, often made of rubber or neoprene. It is placed between the steel edge profiles and ensures a watertight seal while allowing for movement. This material should be durable, weather-resistant, and capable of accommodating various types of movement.
3. **Anchor Systems:** The expansion joint is anchored to the bridge structure to prevent unintentional movement or displacement. Anchors are usually positioned at intervals along the length of the joint.
4. **Cover Plates:** In some designs, cover plates may be used to protect the sealing element from debris, water, and other environmental factors. These plates can also provide a smoother surface for vehicles to traverse.
The strip seal expansion joint allows for both translational and rotational movement, providing flexibility for the structure during expansion and contraction. This movement helps to reduce stress on the bridge components and prevents potential damage that could occur if the expansion and contraction were restricted.

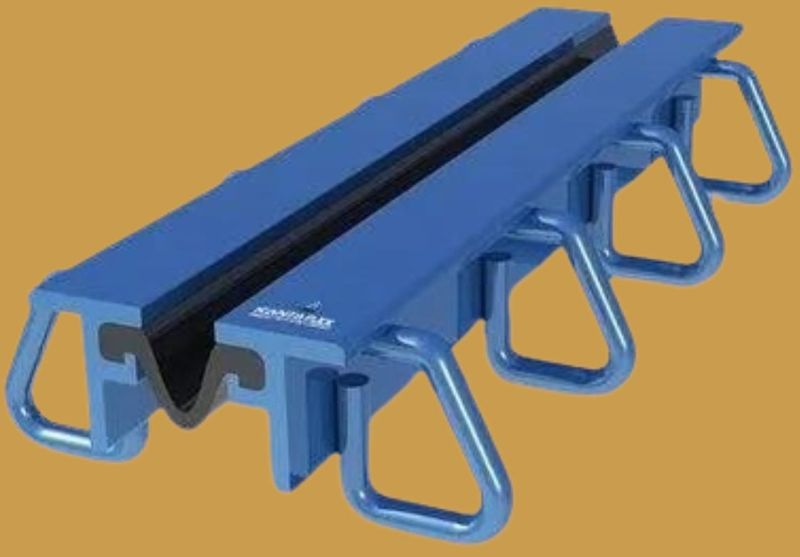

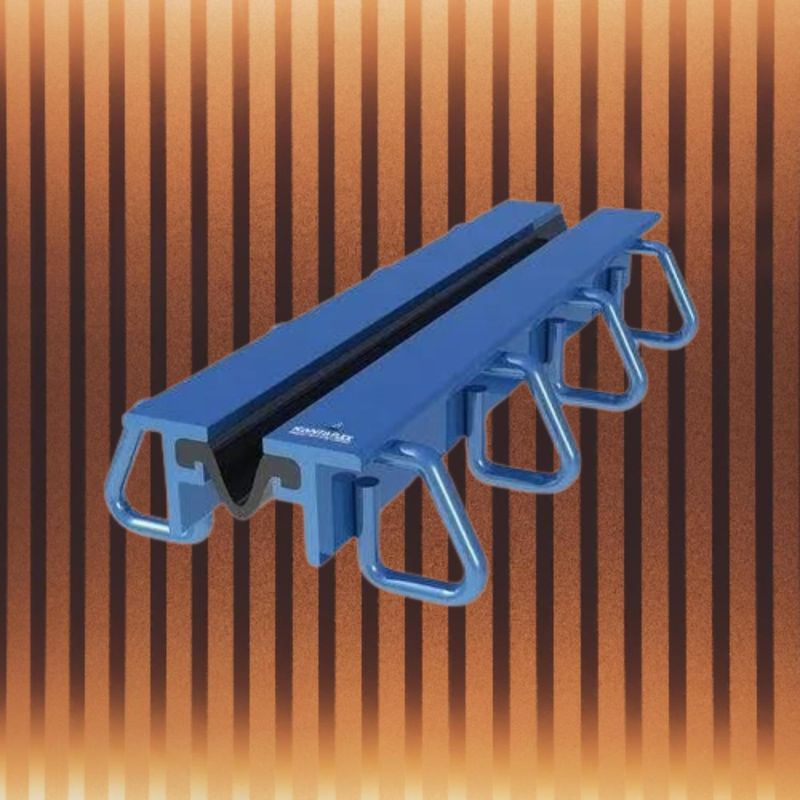

The Sandhyaflex F Type Strip Seal Expansion Joint is a high-performance joint system designed for bridges, highways, flyovers, and other infrastructure projects that require controlled expansion and contraction while maintaining structural integrity.

1. F-Type Design:

   • The F-shaped profile provides excellent load distribution and movement absorption.
   • Designed to securely hold the elastomeric strip seal while allowing smooth expansion and contraction.

2. Durable & High-Quality Material:

   • Made from premium-grade elastomeric rubber and reinforced steel for superior strength.
   • Resistant to UV rays, extreme temperatures, and environmental wear.

3. Superior Movement Absorption:

   • Handles longitudinal, transverse, and rotational movements, ensuring flexibility without structural damage.
   • Reduces stress on bridge decks and concrete surfaces.

4. Waterproof & Dustproof Seal:

   • The strip seal mechanism prevents water seepage, protecting the underlying structure from corrosion.
   • Blocks dust and debris, reducing maintenance requirements.

5. Easy Installation & Low Maintenance:

   • Designed for quick and efficient installation.
   • Requires minimal upkeep, making it a cost-effective expansion joint solution.

6. Heavy-Duty Load Bearing:

   • Engineered to withstand heavy vehicular traffic, including trucks and commercial vehicles.
   • Ensures long-term durability in high-traffic areas.

• Bridges & Flyovers – Essential for accommodating structural movements.
• Highways & Roads – Enhances road durability and prevents cracking.
• Industrial Structures – Used in large infrastructure projects where expansion joints are necessary.

The Sandhyaflex F Type Strip Seal Expansion Joint is a reliable, long-lasting, and efficient solution for managing structural movements while ensuring safety and durability in major construction projects. 🚧

As of my last knowledge update in January 2022, I don't have specific information about a product or technology known as "GI coated Armour Joint." However, I can provide some general features that might be associated with a product combining galvanized iron (GI) coating and an armor joint:
1. **Corrosion Resistance:** GI coating provides protection against corrosion, which is crucial for applications in various environments, especially those with exposure to moisture or harsh weather conditions.
2. **Strength and Durability:** Armor joints are often associated with strength and durability, providing robust connections or protection in applications such as structural components or military equipment.
3. **Versatility:** Depending on the specific design and application, GI coated armor joints might offer versatility, making them suitable for a range of industries and purposes.
4. **Ease of Installation:** Many joint systems aim for ease of installation, reducing the complexity and time required for assembly. This can be a significant factor in construction or manufacturing applications.
5. **Customization:** Some armor joint systems allow for customization to meet specific requirements, whether in terms of size, shape, or other characteristics.

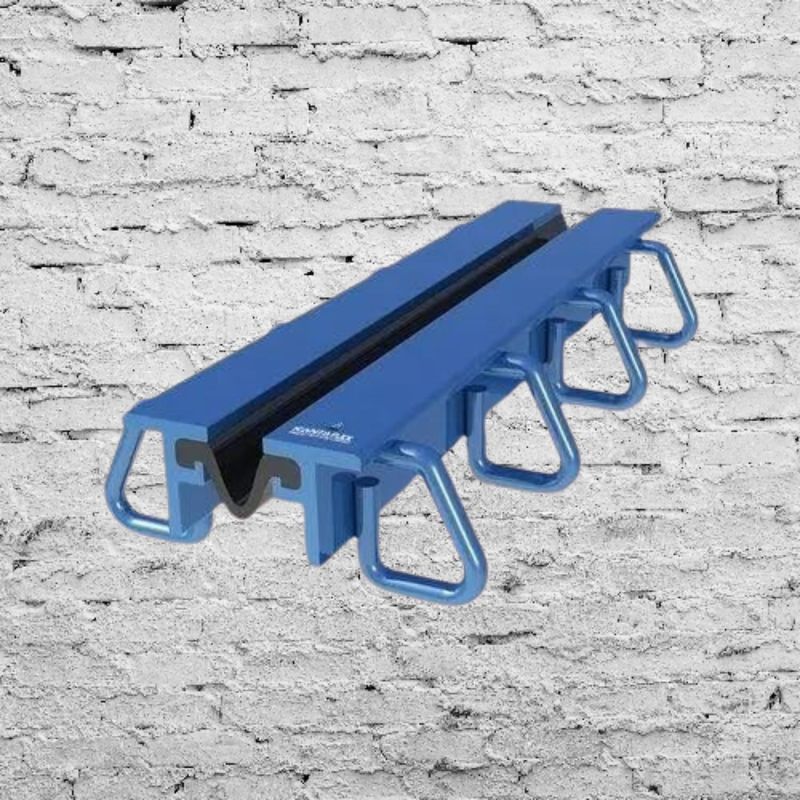

The Sandhyaflex M Type Strip Seal Expansion Joint is typically used in bridges, highways, and other structures to accommodate the movement caused by temperature changes, vibrations, and other forces. This type of expansion joint consists of a strip seal that is highly durable and flexible, designed to handle longitudinal movements in road and bridge decks.

Key features of Sandhyaflex M Type Strip Seal Expansion Joint include:

• Strip Seal Design: This design provides a continuous sealing surface, preventing debris and water from infiltrating the joint while allowing movement.
• High Flexibility: It can accommodate both longitudinal and transverse movements.
• Durability: Made from high-quality materials to withstand harsh weather conditions, heavy traffic loads, and other environmental factors.
• Easy Installation: The joint system is relatively easy to install, which makes it cost-effective for long-term use.
• Reduced Maintenance: Once installed, it requires minimal maintenance, ensuring reliable performance for years.

It is especially useful in regions with extreme temperature fluctuations, as it allows the structure to expand and contract without compromising safety or performance. The Sandhyaflex M Type Strip Seal is a versatile solution used in various civil engineering applications.

In all types of constructive systems there is clear distinction between the two main functions "inflexible anchoring" and "watertight connection“. This allows for best possible adjustment of the two components sealing profile and edge construction to the conditions of the traffic road.

Strip Seal Expansion Joint Key Features:

• Mechanically Locked Seal

• Continuous Sealing Elements

• Racking movement capability (Selective profile of Sealing Element)

• Self Debris Expelling Capability

• Less prone to Abrasion

The Strip Seal Expansion Joint System consists of a rubber gland, mechanically tightened between two steel edge members and provides a superior watertight proofing system. The design of the DECG Strip Seal System can easily accommodate.

The Strip Seal system is a unique concept for effectively sealing expansion joints in bridges and structures with movements up to 125 mm. Single-Seal Expansion Joints are available in different versions for constructive systems exposed to traffic.

They also help extend the life of concrete structures by providing some “give” in the movement of the structure. Expansion joints can be used in parking garages, overpasses, roadways, sidewalks, piping structures and railway tracks.

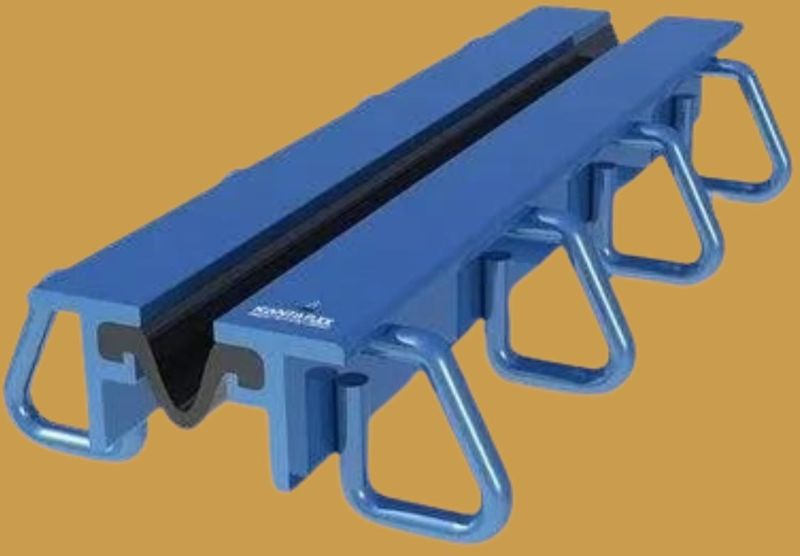

The Sandhyaflex NH Project T Type Strip Seal Expansion Joint is a specialized expansion joint designed for National Highway (NH) projects, bridges, flyovers, and other large-scale infrastructure developments. It effectively absorbs structural movements caused by thermal expansion, seismic activity, and heavy traffic loads, ensuring long-term durability and safety.

1. T-Type Design for Superior Performance:

   • The T-shaped profile ensures a secure connection between bridge decks and structural elements.
   • Allows smooth expansion and contraction while maintaining structural integrity.

2. High-Quality Materials:

   • Constructed from premium-grade elastomeric rubber and reinforced steel for maximum durability.
   • Resistant to harsh weather conditions, UV exposure, and corrosion.

3. Efficient Movement Absorption:

   • Accommodates longitudinal, transverse, and rotational movements of the structure.
   • Prevents structural damage caused by expansion and contraction.

4. Waterproof & Debris-Resistant:

   • The strip seal prevents water leakage, protecting the bridge substructure from corrosion.
   • Blocks dust and debris, reducing maintenance needs.

5. Heavy-Duty Load Bearing:

   • Engineered for National Highway (NH) projects, designed to withstand high-traffic loads including heavy trucks and commercial vehicles.
   • Ensures smooth movement of vehicles without causing structural distress.

6. Easy Installation & Low Maintenance:

   • Designed for quick installation, reducing construction downtime.
   • Requires minimal maintenance, making it a cost-effective solution for highway infrastructure.

✔ National Highways & Expressways – Ideal for large-scale highway projects requiring expansion control.
✔ Bridges & Flyovers – Ensures durability and safety under continuous vehicular movement.
✔ Industrial & Infrastructure Projects – Used in heavy-duty structures to manage expansion movements.

The Sandhyaflex NH Project T Type Strip Seal Expansion Joint is a high-performance, long-lasting, and cost-effective solution for managing structural expansion in major highway and bridge projects. 🚧🛣

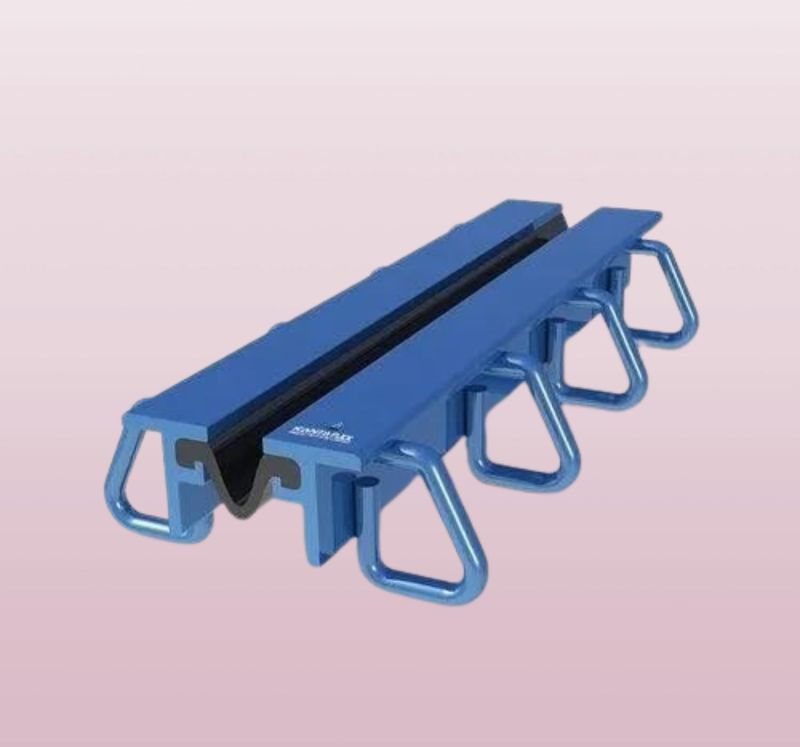

The Sandhyaflex T Type Strip Seal Expansion Joint is a specialized joint system used in bridges, highways, and large infrastructure projects to manage structural movements caused by thermal expansion, seismic activity, and traffic loads. This type of expansion joint is designed to provide durability, flexibility, and long-term performance.

1. T-Type Design:

   • The unique T-shaped profile ensures a secure fit between bridge decks or other structural elements.
   • Provides effective sealing while accommodating movement in multiple directions.

2. High-Quality Materials:

   • Made from premium-grade elastomeric rubber and reinforced steel for enhanced strength and durability.
   • Resistant to extreme temperatures, UV exposure, and weathering.

3. Efficient Movement Absorption:

   • Can handle both longitudinal and transverse movements, ensuring smooth expansion and contraction of the structure.
   • Reduces stress on the bridge deck, preventing premature wear and tear.

4. Waterproof & Debris-Resistant:

   • The strip seal mechanism prevents water ingress, protecting the underlying structure from corrosion.
   • Blocks debris accumulation, reducing maintenance needs.

5. Easy Installation & Low Maintenance:

   • Designed for quick and hassle-free installation.
   • Requires minimal maintenance, making it a cost-effective solution for infrastructure projects.

6. Ideal for Heavy-Duty Applications:

   • Suitable for bridges, highways, flyovers, and large concrete structures where expansion control is critical.
   • Can withstand heavy traffic loads, including trucks and commercial vehicles.

The Sandhyaflex T Type Strip Seal Expansion Joint is a reliable and long-lasting solution for managing structural movements while maintaining safety and durability. It is widely used in bridge construction, highways, and industrial structures where expansion joints are essential.

A bridge expansion joint, often simply referred to as an expansion joint, is a structural component used in the construction of bridges and other infrastructure to allow for movement, expansion, and contraction due to temperature changes, traffic loads, and other factors. These joints are essential to prevent damage and maintain the structural integrity of the bridge.
Key features and information about bridge expansion joints:
1. Movement Accommodation: Bridge expansion joints are designed to accommodate various types of movement, including expansion (increasing in length), contraction (decreasing in length), lateral movement, and vertical movement. This flexibility helps prevent cracking, distortion, or failure of the bridge structure.
2. Types: There are different types of expansion joints used in bridge construction, including:   - Modular Expansion Joints: These are pre-fabricated, multi-segment joints that can accommodate larger movements.   - Strip Seals: These consist of flexible rubber seals that are installed between metal or concrete strips.   - Finger Joints: These joints feature a series of finger-like elements that can expand and contract.   - Sliding Plate Joints: These joints use sliding plates to allow movement.
3. Materials: Expansion joints can be made of various materials, including steel, aluminum, rubber, and other elastomers. The choice of material depends on factors like the bridge's design, expected movement, and environmental conditions.
4. Installation: Expansion joints are typically installed between bridge segments or at connection points to accommodate movement. Proper installation is crucial to ensure their effectiveness.
5. Maintenance: Regular inspection and maintenance are essential to ensure that expansion joints continue to function correctly. Maintenance may include cleaning, lubrication, and replacement of damaged components.
