| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | SANDHYAFLEX |
| Material | Natural/Synthetic/Blend Rubber Compound,Rubber Impregnated Woven Textile Or High Strength Natural/Synthetic Fibre,Rubber Compound With Cloth Marked Finish,Copper Wire |
| Finishing | Polished |
| Click to view more | |
Product Details
Shape
Round
Color
Black
Pressure
Medium
Usage
Industrial Use, Conveying Sand,Shots,Or Other Abrasive Materials In Industries Like Ordnance,Steel Fabrication,Shipyards,Manufacturing Workshops,Heavy Engineering,Gas Cylinder Manufacturing
Certification
ISO:9001:2015
Packaging Type
Standard Packaging As Per Industry Norms
Country of Origin
India
Port
mumbai
Payment Terms
L/C
Delivery Time
7 to 15 days

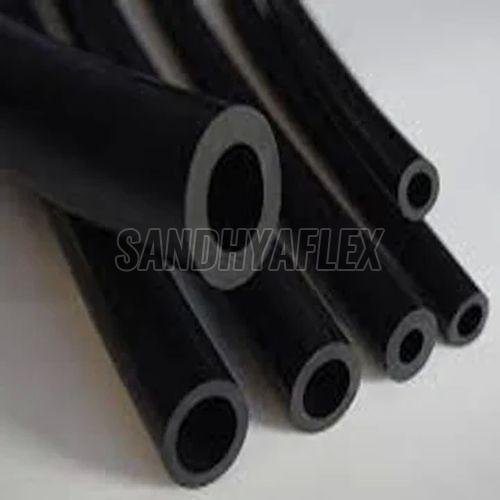

Sand Blasting Hose for conveying sand, shots or other abrasive materials used in ordnance factory, steel fabrication, shipyards, manufacturing workshops, heavy engineering industries, Gas cylinder manufacturing units etc.
Lining : Uniform seamless tube of natural/synthetic/blend rubber compound of high tensile strength, excellent abrasion resistance and free from air blister, porosity and other defects
Reinforcement : Plies of rubber impregnated woven textile or braiding of high strength natural/synthetic fibre.
Cover : Suitable rubber compound of cloth marked finish resistant to abrasion and weather.
Electric Bonding :; A strand of copper wire is embedded between the reinforcement plies to provide electrical continuity throughout the length of the hose
Pressures: Type 1 - W. P. 0.7 MPa & B. P. 3.5MPa. Type 2 - W. P. 1.0 MPa & B. P. 5.0MPa
Specification
| Nom. Bore (mm) | Tolerance on Nom. bore (mm) | Min. Thk. of Lining (mm) | Min. Thk. of Cover (mm) |
| 20 | ± 0.75 | 6.3 | 1.5 |
| 25 | ± 1.25 | 6.3 | 1.5 |
| 31.5 | ± 1.25 | 6.3 | 1.5 |
| 38 | ± 1.50 | 6.3 | 1.5 |
| 45 | ± 1.50 | 6.3 | 1.5 |
| 50 | ± 1.50 | 6.3 | 1.5 |
