| Business Type | Manufacturer, Exporter, Supplier |
| Color | Black |
| Country of Origin | India |
| Material | Rubber Compounds, Woven Textile, G.I. Wire |
| Click to view more | |
Product Details
Application
Dock And Offshore Operation Of Petroleum Products
Lining
Smooth Lining Of Suitable Rubber Compounds
Resistance
Petroleum & Blended Products With Up To 25% Aromatic Hydro-carbon Content
Plies
Rubber Impregnated Woven Textile With Helically Embedded G.I. Wire
Cover Material
Rubber Compound
Cover Resistance
Oil, Abrasion & Weather

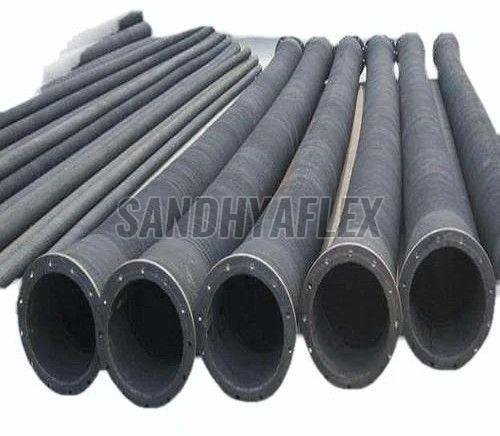

Oil Suction Rubber Hose Application: For dock and offshore operation of petroleum products containing not more than 25% aromatic hydrocarbon content.
Construction-Lining: Lining : Smooth lining of suitable rubber compounds; uniform in thickness; free from air blisters & porosity; resistant to all grade of petroleum & blended products having an aromatic hydro-carbon content not more than 25%.
Plies of rubber impregnated woven textile with helically embedded G.I.wire.
Cover : Corrugated or cloth marked finish, suitable rubber compound having resistance to oil, abrasion & weather.
Specification
| Nom. Bore in (mm) | Tolerance on Nom. bore (mm) | Projection to Nipple (min) | W.P. 7Kg/cm2 Rough Bore Mass Kg/m Bend Radius M | B.P. 28Kg/cm2 Smooth Bore Mass Kg/m Bend Radius M | W.P. 10Kg/cm2 Rough Bore Mass Kg/m Bend Radius M | B.P. 40Kg/cm2 Smooth Bore Mass Kg/m Bend Radius M | W.P. 15Kg/cm2 Rough Bore Mass Kg/m Bend Radius M | B.P. 60Kg/cm2 Smooth Bore Mass Kg/m Bend Radius M |
| 63 | ± 2.0 | 115 | 8.5 0.75 | 6.5 0.65 | 10.5 0.85 | 8.5 0.70 | ** ** | ** ** |
| 75 | ± 2.0 | 130 | 10.0 0.85 | 7.5 0.70 | 12.0 1.00 | 10.0 0.85 | ** ** | ** ** |
| 100 | ± 2.0 | 150 | 15.0 1.10 | 11.0 1.0 | 18.0 1.25 | 14.0 1.00 | ** ** | ** ** |
| 150 | 2 | 150 | 30.0 1.60 | 22.5 1.40 | 36.0 1.85 | 24.0 1.60 | 48.0 2.15 | 3.15 2.00 |
| 200 | ± 3.0 | 165 | 45.0 2.15 | 28.5 1.85 | 51.0 2.50 | 36.0 2.15 | 48.0 2.15 | 4.35 2.80 |
| 250 | ± 3.0 | 180 | ** ** | ** ** | 66.0 3.10 | 49.5 2.70 | 78.0 3.70 | 66.0 3.40 |
| 300 | ± 3.0 | 180 | ** ** | ** ** | 81.0 3.70 | 66.0 3.30 | 93.0 4.00 | 80.0 4.00 |
