| Business Type | Manufacturer, Exporter, Supplier |
| Color | Black |
| Usage | Suction And Delivery Of Air Dust Grain Powder |

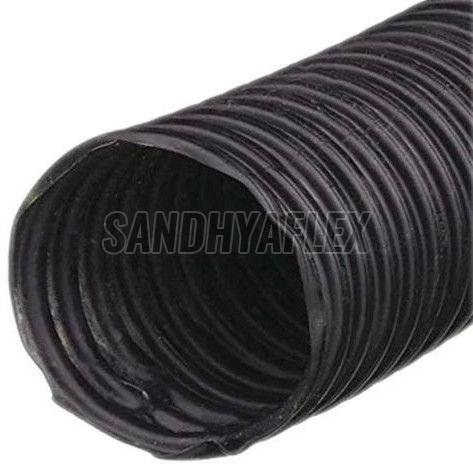

| Type | Suction Hose |
| Click to view more | |
Product Details
Country of Origin
India
Tube Material
Natural And Synthetic Rubber
Reinforcement Material
Synthetic Textile And Steel Helix Wire
Cover Material
Abrasion, Ozone, Weather And Heat Resistant Synthetic Rubber Corrugated
Temperature Range
-40°C To 80°C
Details :
- Tube : Natural and Synthetic Rubber.
- Reinforcement : Synthetic Textile and Steel Helix Wire.
- Cover : Abrasion. Ozone, Weather and Heat Resistant Synthetic Rubber Corrugated.
- Application : For Suction and Delivery of Air Dust Grain Powder Etc.
Specification
| ID in Inch | ID in mm | OD in mm | Vaccum in Bar | BR/r in mm | W in g/m |
| 1” | 25.4 | 32 | 0.6 | 40 | 417 |
| 1 ¼” | 32 | 39 | 0.6 | 60 | 617 |
| 1 ½” | 38 | 45 | 0.6 | 75 | 721 |
| 1 ¾” | 44.5 | 52 | 0.6 | 90 | 806 |
| 2” | 50.8 | 58 | 0.6 | 100 | 912 |
| 2.1/2” | 63.5 | 72 | 0.6 | 125 | 1407 |
| 3” | 76.2 | 84.5 | 0.6 | 150 | 1694 |
| 4” | 101.6 | 110 | 0.6 | 200 | 2336 |
| 5” | 127 | 135 | 0.6 | 295 | 3176 |
| 6” | 152.4 | 162 | 0.6 | 380 | 4171 |
| 8” | 203.2 | 214 | 0.6 | 700 | 6282 |
| 10” | 254 | 267 | 0.6 | 1000 | 8795 |
| 12” | 305 | 319 | 0.6 | 1400 | 10430 |
