| Business Type | Manufacturer, Exporter, Supplier |
| Finishing | Polished |
| Country of Origin | India |
| Usage | Wide Range Of Chemicals, Acids, Alkalies, Alcoholic, Mineral Acids Handling |
| Click to view more | |
Product Details
Reinforcement
Rubber Coated Woven Textile, Braided Synthetic Yarns, Helical Galvanized Steel Wire
Type
Type 1 For Dilute Chemicals, Type 2 For Concentrated Chemicals
Pressure
Type 1 W.P. 1.00 MPa, B.P. Min. 3.15 MPa; Type 2 W.P. 1.00 MPa, B.P. Min. 4.00 MPa
Lining
EPDM, Hypalon, Thiokol, Chloroprene, Butyl, SBR, NBR, Natural/synthetic/blend Rubber Compound
Cover
Smooth, Fluted Or Fabric Marked Finish With Weather-resistant Rubber Compound

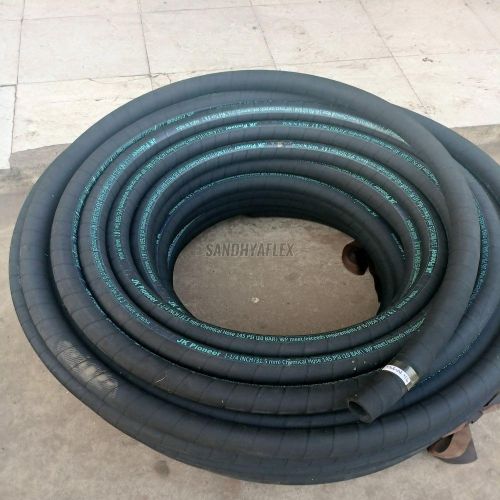

Application : As Chemical Rubber Hose manufacturer Designed to handle a wide range of chemicals, acids, alkalies and alcoholic, mineral acids, aqueous solution of inorganic materials during production and their transferring operations.
Lining : Uniform seamless tube of EPDM, Hypalon, Thiokol, Chloroprene, Butyl, SBR, NBR, natural/synthetic/blend rubber compound or a blend depending on the liquid for which the hose is intended to be used.
Reinforcement : Plies of rubber coated woven textile or braided synthetic yarns with or without helical galvanized steel wire.
Cover : Smooth, fluted or fabric marked finish with suitable rubber compound, resistant to weather.
Types : Type 1 for conveying dilute chemicals. Type 2 for conveying concentrated chemicals.
Pressures : Type 1 W.P. of 1.00 MPa & B.P. min.3.15 MPa . Type 2 W.P. of 1.00 MPa & B.P. min.4.00 MPa Nom
Specification
| Nom. Bore in (mm) | Tolerance on Nom. bore (mm) | Min. Thk. of Lining (mm) | Min. Thk. of Cover (mm) |
| 10 | ± 0.75 | 2 | 1.3 |
| 12.5 | ± 0.75 | 2 | 1.3 |
| 16 | ± 0.75 | 2 | 1.3 |
| 20 | ± 0.75 | 2 | 1.3 |
| 25 | ± 1.25 | 2 | 1.3 |
| 31.5 | ± 1.25 | 2 | 1.3 |
| 38 | ± 1.50 | 2 | 1.3 |
| 45 | ± 1.50 | 2 | 1.3 |
| 50 | ± 2.00 | 2 | 1.3 |
