Rubber Hoses

As Air and Water Yarn Braided Hose we are started in 2010, we laid out our goals for the sed future in our Strategy 2015, including our vision and mission for our company. Our vision emphasizes that the we want to be The Best Finance Company through the world this is goes beyond the simple fact that, as soon global company,

Our vision emphasizes that the we want to be The Best Finance Company through the world this is goes beyond the simple fact that, as soon global company. Perspiciatis unde omnis iste natus error sit elites voluptatem accu santiumuo doloremque laudatium, totam rem aperiam, eaque ipsa quae ab illomas ilts inventore veritatis et quasi architecto

Mister we could use a man like Herbert Hoover again. Maybe you and me were never meant to be. But baby think of me once in awhile. I'm at WKRP in Cincinnati! Just two good ol' boys Wouldn't change if they could system like a true modern.

Carbon Free Rubber Hose Application: For carrying power cables in glass works, electrical furnaces, servicing in iron & steel industries for protection from exposure to high temperature, current leakage, radiation from steel furnace, open flame and splashes of hot metal.

• Construction : Lining : Smooth, non conductive, natural / synthetic/blend rubber compound.
• Reinforcement : Natural/synthetic rubberized woven textile fabric.
• Cover : Oil, heat and electrical resistant synthetic rubber compound with or without asbestos outer

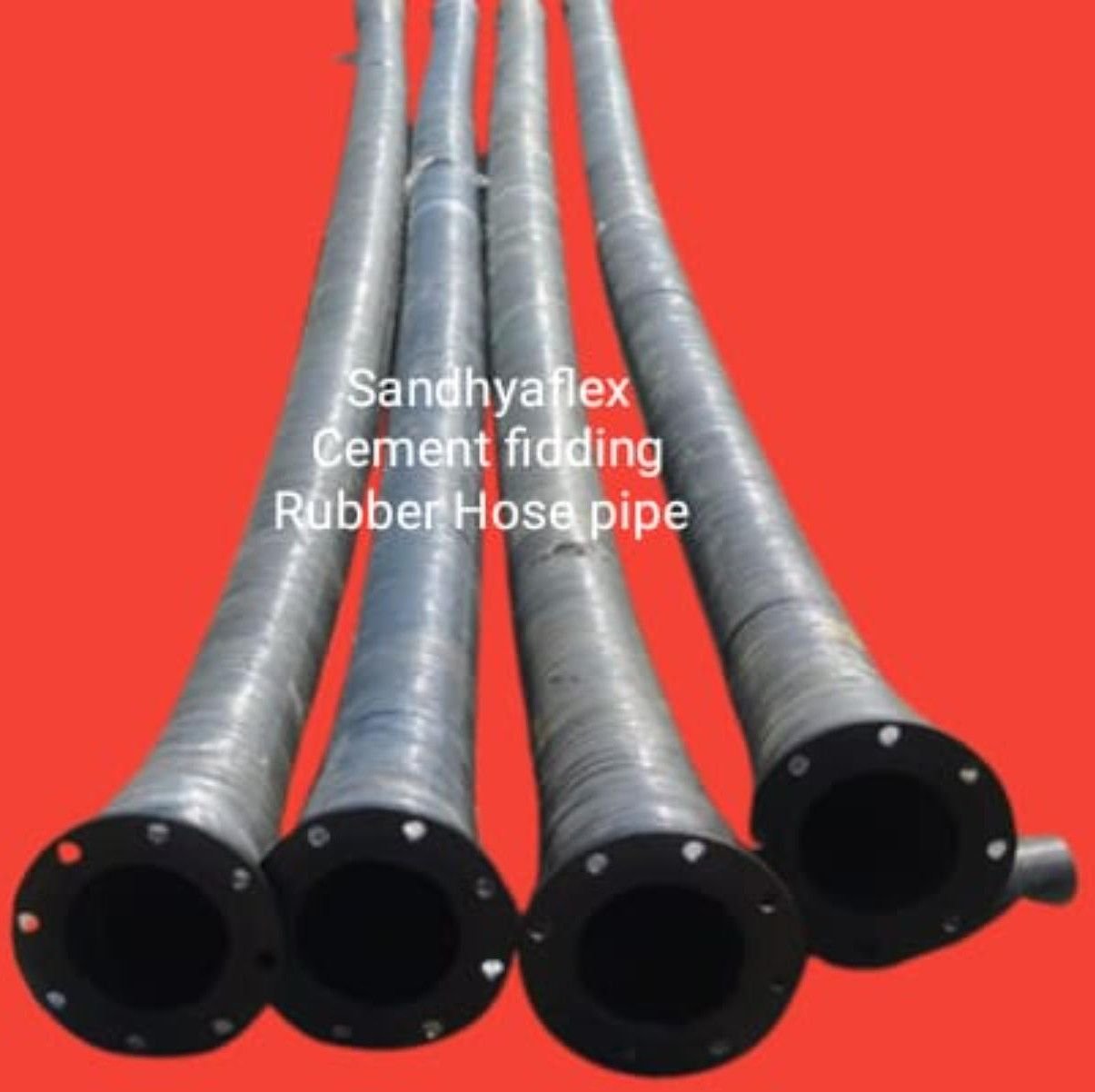

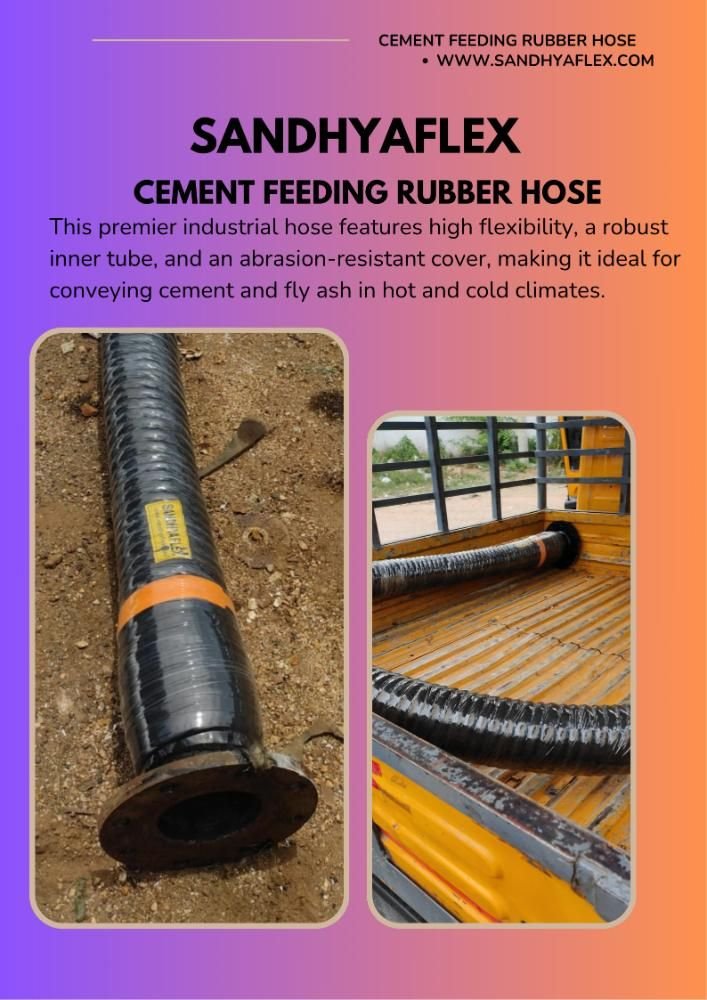

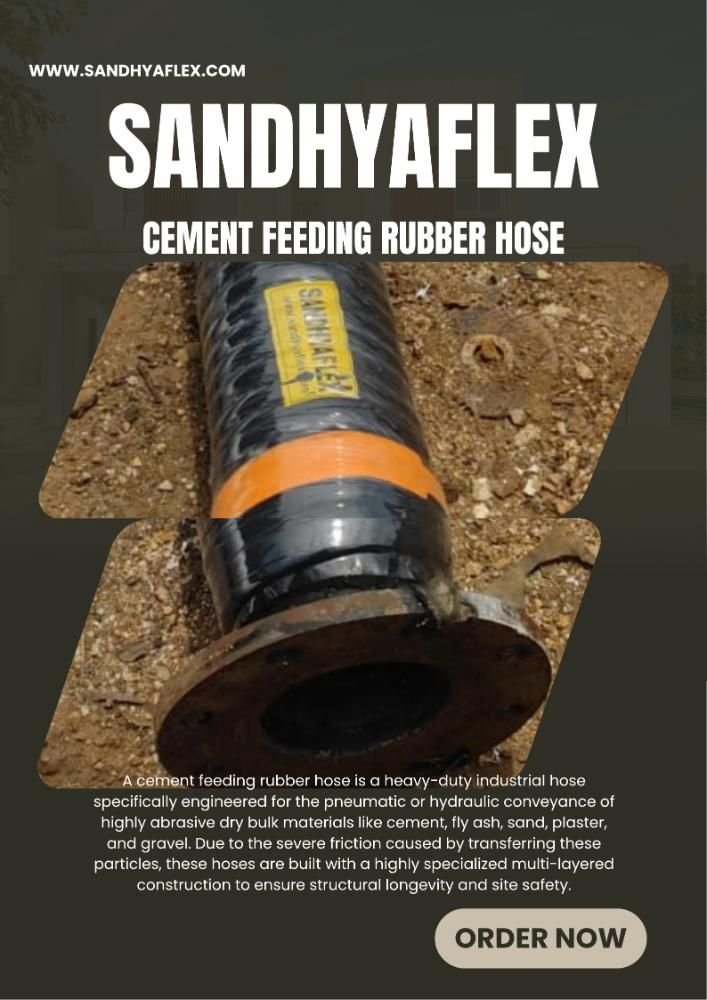

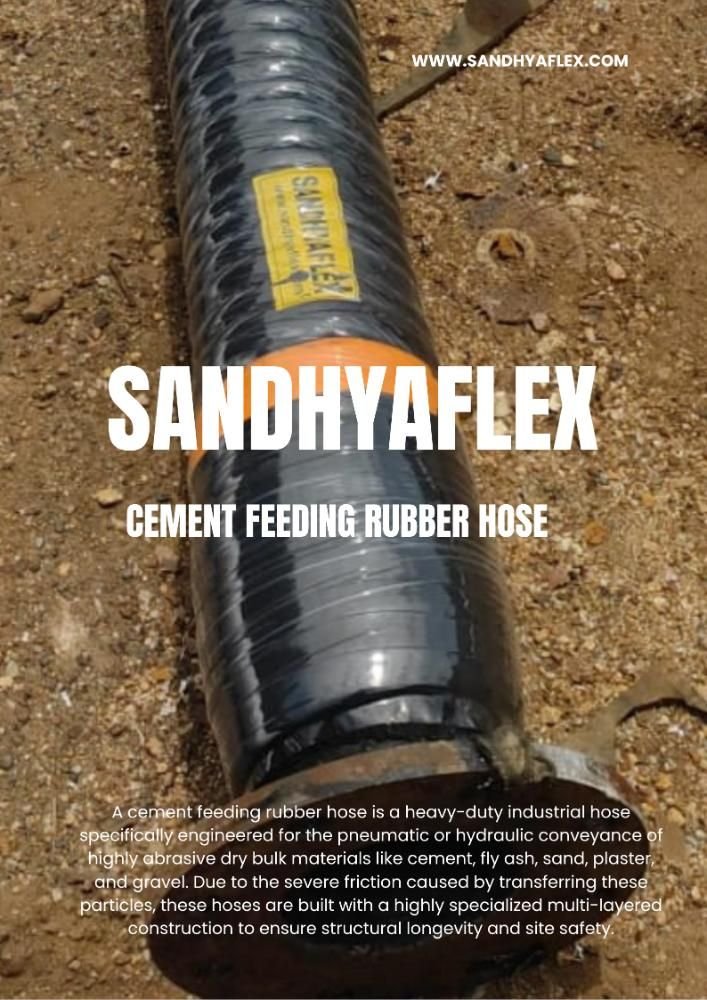

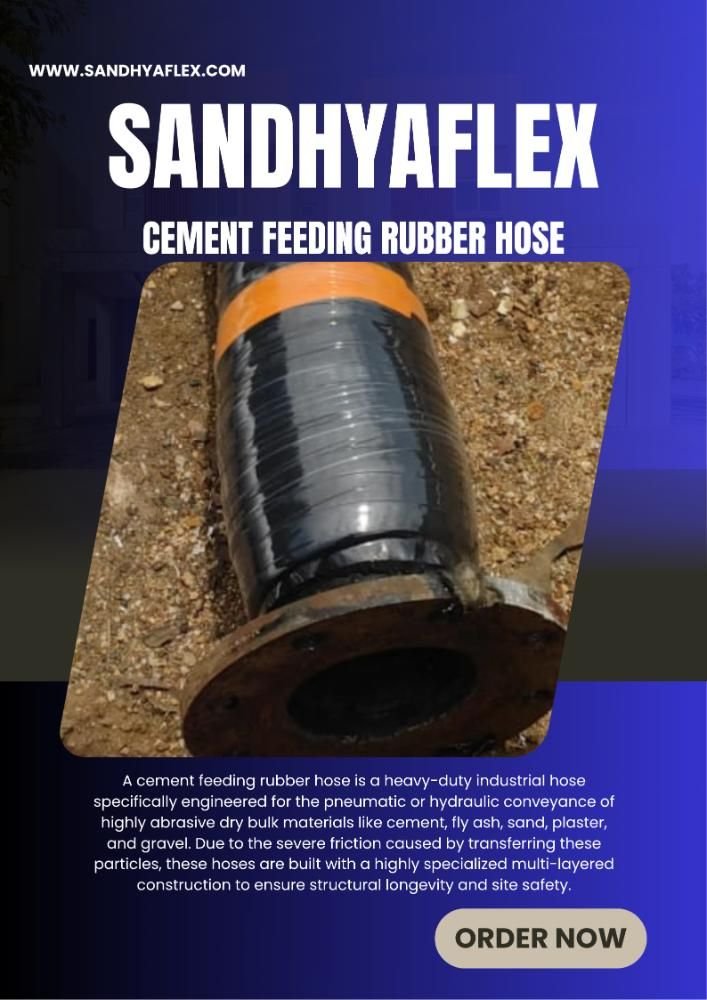

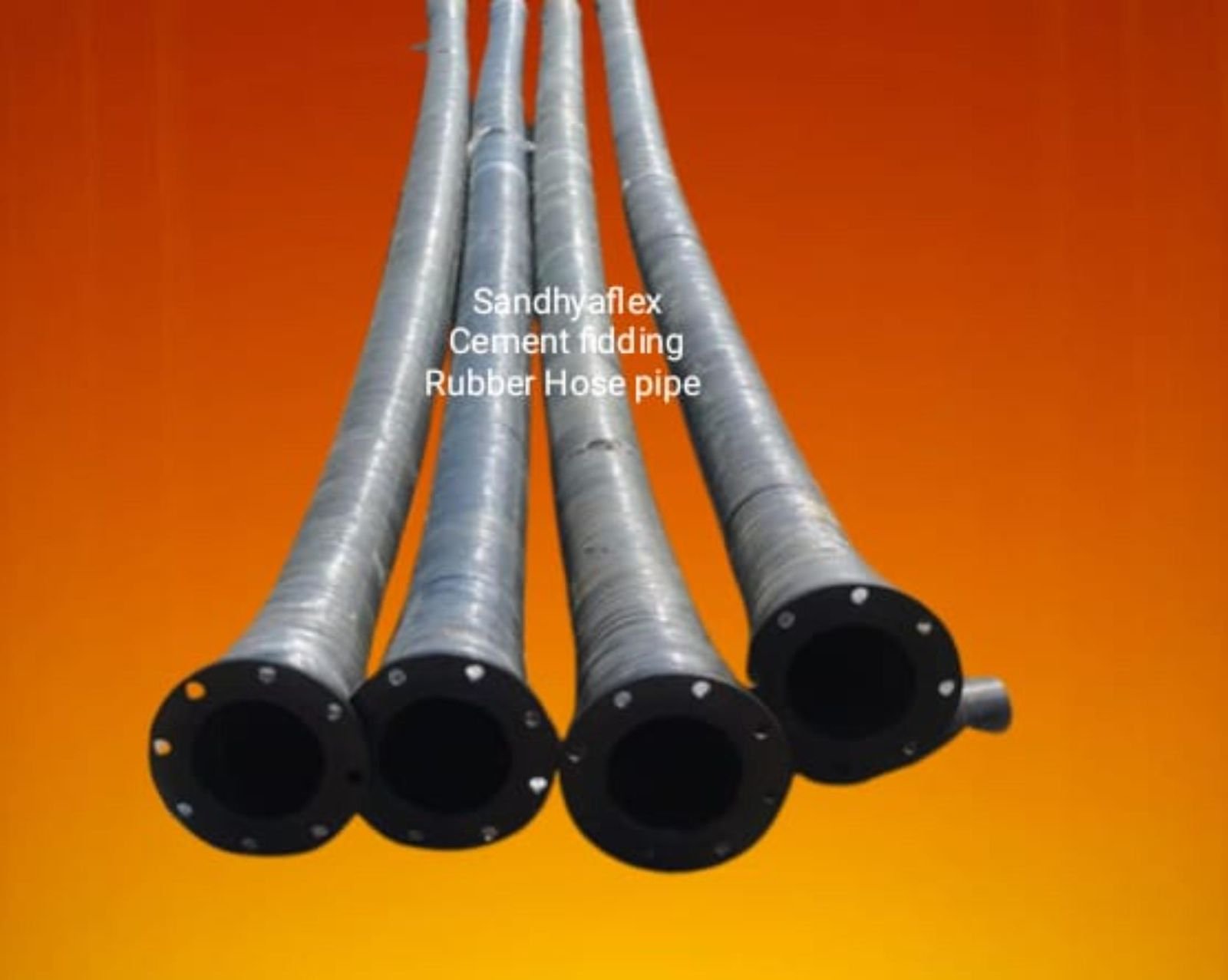

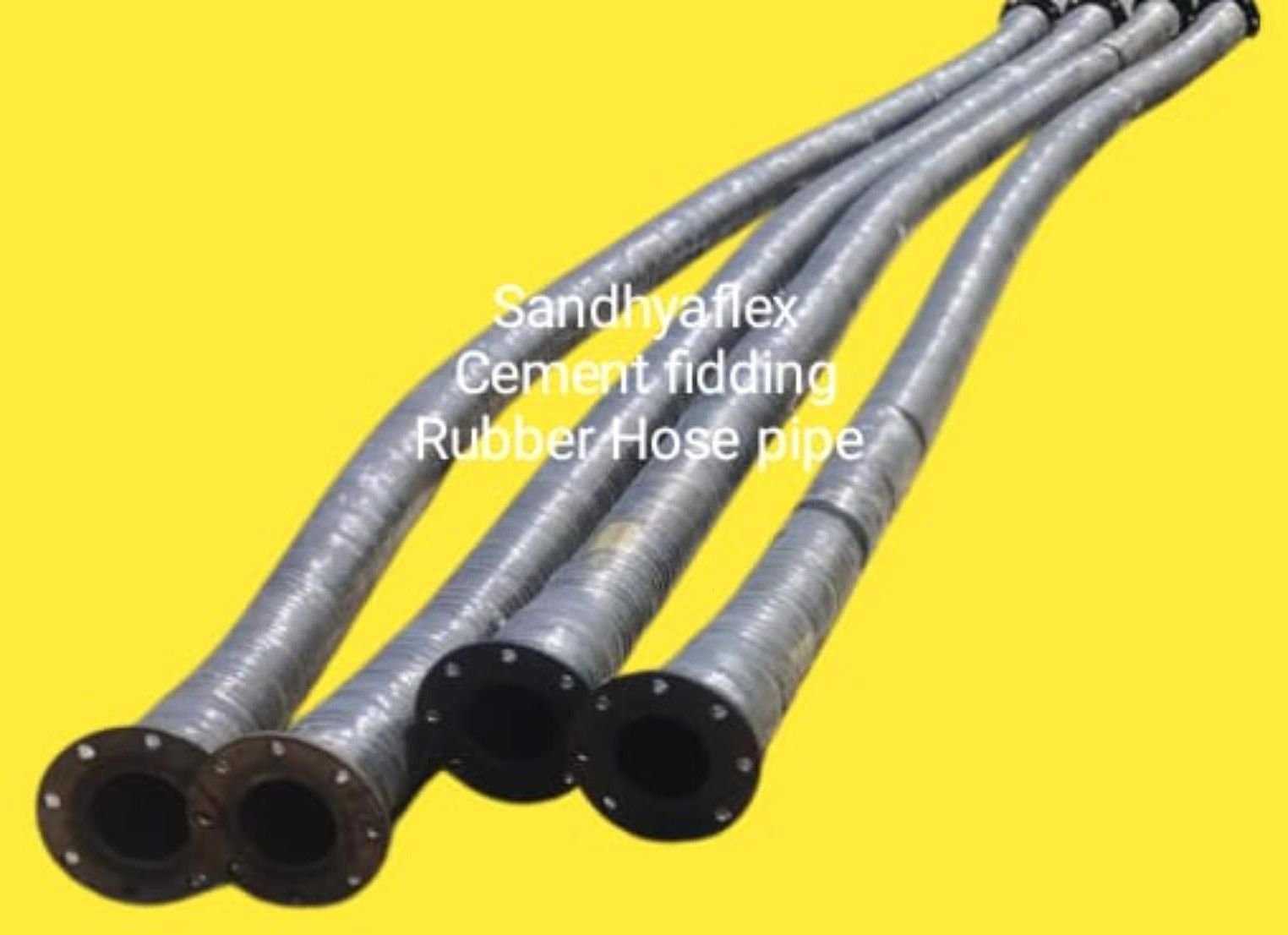

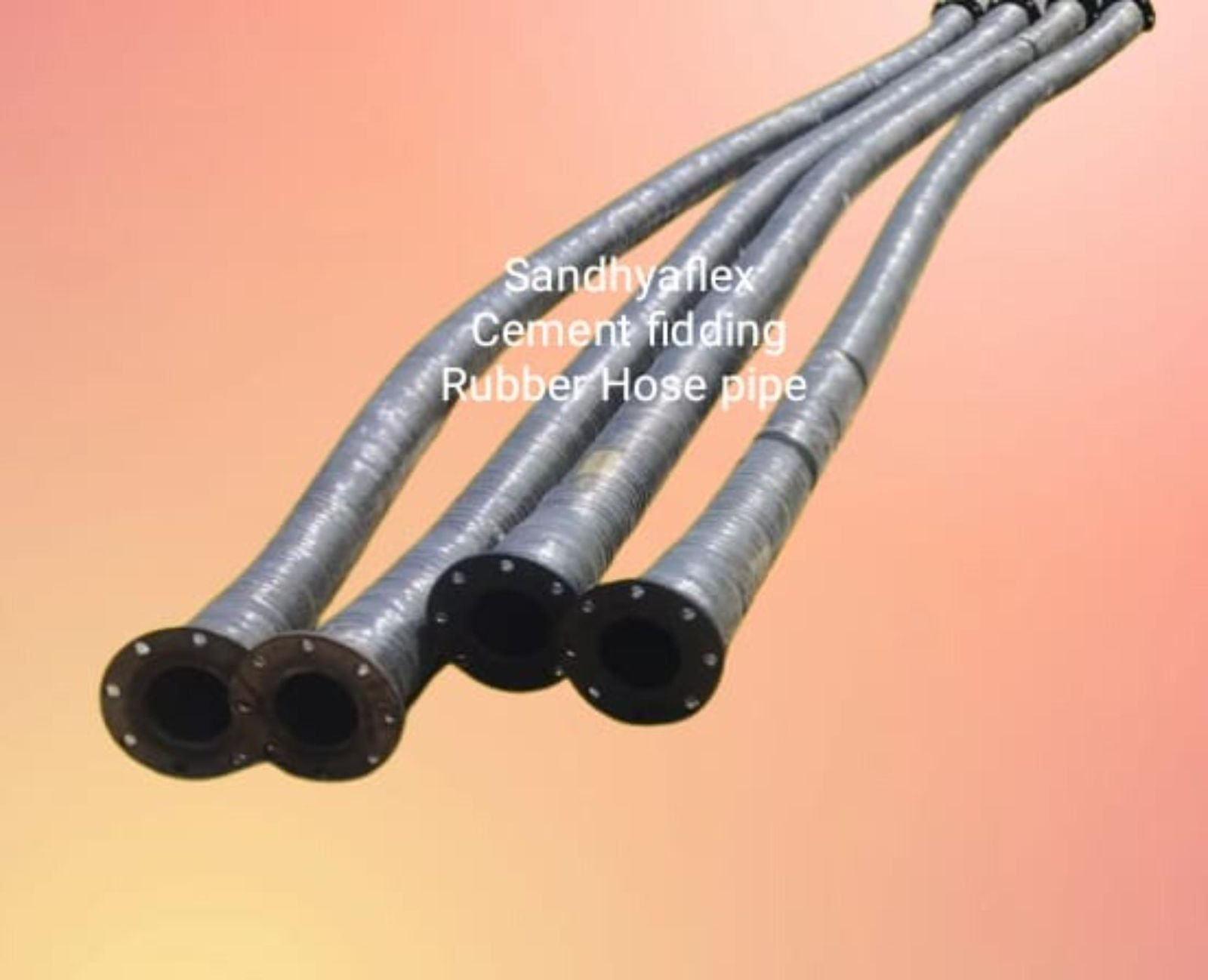

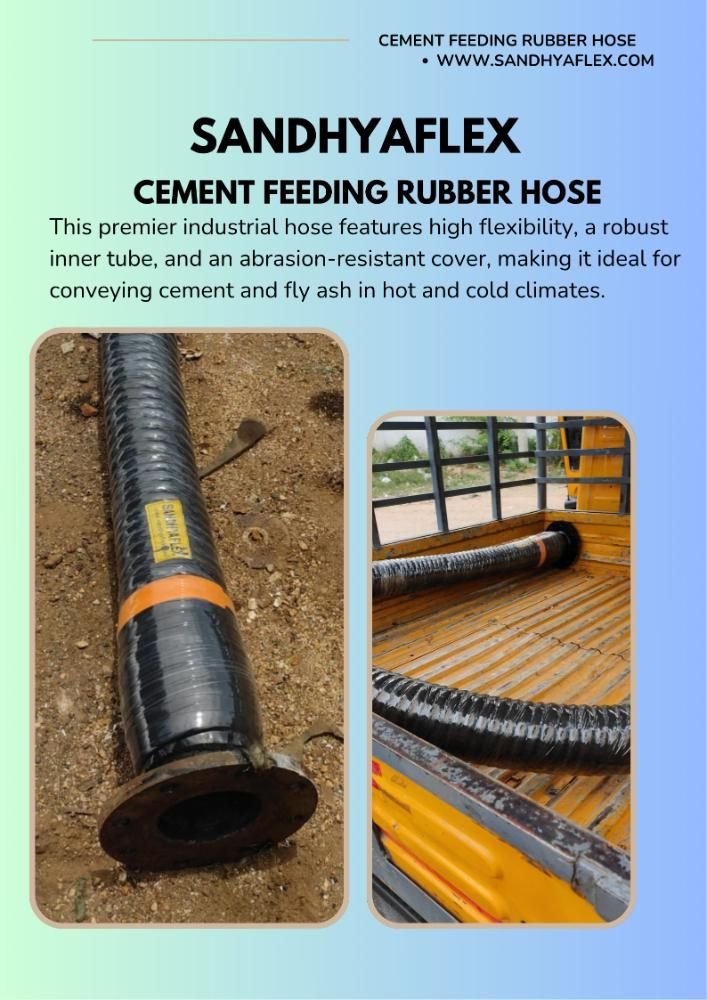

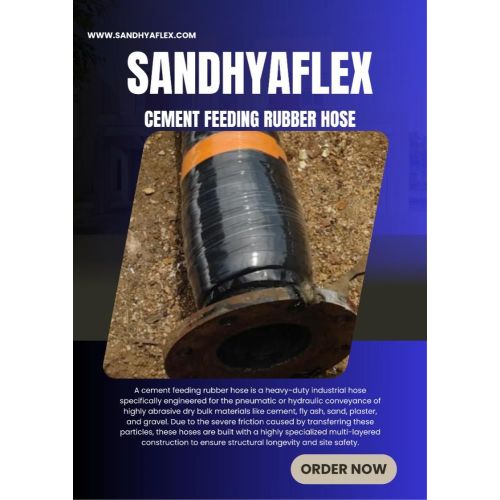

sandhya Flex is an expert in producing sturdy cement hoses that are customized for a range of construction uses. The seamless rubber blend of synthetic and natural rubber compounds used to make the lining of these hoses provides outstanding durability and resistance to abrasion. High-strength natural or synthetic yarns impregnated with rubber piles make up the reinforcement, which adds stability and strength. A weather- and abrasion-resistant rubber compound cover further reinforces the hose and provides protection from inclement weather.

A copper wire strand inserted into the hose also guarantees electrical continuity along its entire length. Sandhya Flex cement hoses are made to endure the harsh conditions of building sites, offering flexibility and user-friendliness along with dependable performance. Customisation possibilities help customers achieve project requirements that are unique to them. Sandhya Flex guarantees that every hose satisfies industry standards and requirements, providing technical assistance and after-sales service to maximise performance. The company is dedicated to quality and client happiness.

Application of Cement Hose : Cement Feeding Rubber Hose is used for spraying cement grout at irrigation projects, buildings, dams, sites, dams, bridges and roads in hilly terrains.

Construction:

• Lining: This is a natural, synthetic, and blended rubber compound tube that is unusually thick, homogeneous, and seamless. It delivers excellent abrasion resistance without air blisters, porosity, or other flaws.
• Reinforcement: Rubber piles impregnated woven textiles or braided high-strength natural or synthetic yarns
• Cover: This rubber compound is acceptable and has a cloth-marked surface that makes it resistant to weather and abrasions.
• Electrical Bonding: To ensure electrical continuity along the entire length of the hose, a stand of copper wire is placed in the reinforcing plies.

Specifications

• Compliant with IS: Our cement hoses, which adhere to IS: 13071-1991 standards, have strong features made to withstand the demanding needs of the construction sector.
• Core: The hose's black, abrasion-resistant core, which is made of a sturdy mixture of natural and synthetic rubber, ensures longevity and dependability under harsh conditions.
• Reinforcement: Our hoses are reinforced with high-tensile synthetic textile cords, which give them exceptional strength and stability. This allows for the effective placement of sand, plaster, and cement during building projects.
• Cover: Made of synthetic rubber in black, our hoses are designed to withstand ozone, weathering, and abrasion, giving them extra endurance and protection in harsh environments.
• Application: Our hoses are designed to provide outstanding performance and dependability, making them perfect for precisely placing sand, cement, and plaster in construction applications.

Application : As Chemical Rubber Hose manufacturer Designed to handle a wide range of chemicals, acids, alkalies and alcoholic, mineral acids, aqueous solution of inorganic materials during production and their transferring operations.

Lining : Uniform seamless tube of EPDM, Hypalon, Thiokol, Chloroprene, Butyl, SBR, NBR, natural/synthetic/blend rubber compound or a blend depending on the liquid for which the hose is intended to be used.

Reinforcement : Plies of rubber coated woven textile or braided synthetic yarns with or without helical galvanized steel wire.

Cover : Smooth, fluted or fabric marked finish with suitable rubber compound, resistant to weather.

Types : Type 1 for conveying dilute chemicals. Type 2 for conveying concentrated chemicals.

Pressures : Type 1 W.P. of 1.00 MPa & B.P. min.3.15 MPa . Type 2 W.P. of 1.00 MPa & B.P. min.4.00 MPa Nom

An essential component in construction, a concrete end hose pipe facilitates the precise and efficient transfer of concrete from the pump to the intended surface. Constructed with robust materials, it ensures a reliable flow of concrete while withstanding pressure and abrasion. This flexible tool is vital for reaching challenging areas and maintaining a continuous concrete placement process. Its durability and adaptability make it indispensable in various construction projects, from buildings to infrastructure. The concrete end hose pipe streamlines the concrete placement process, enhancing project efficiency and contributing to the creation of sturdy structures.

A concrete end hose pipe, also known simply as an end hose or end hose pipe, is a specialized component used in concrete pumping equipment. Concrete pumps are used to transfer liquid concrete from a mixer truck or hopper to the intended construction site, often at a significant distance or height. The end hose pipe is a crucial part of this pumping system as it serves as the final conduit through which the concrete is delivered to its destination.

Concrete end hose pipes play a critical role in the construction industry by enabling the efficient and precise placement of concrete in hard-to-reach or elevated areas. They are commonly used in various construction projects, including building construction, infrastructure development, and more.

It's important to note that technology and equipment specifications can evolve, so it's always recommended to refer to the manufacturer's guidelines and industry best practices for the most up-to-date information on concrete end hose pipes and their usage.

A concrete end hose pipe is composed of several key components that work together to facilitate the transfer of concrete from the pump to the desired pouring location. These components ensure the durability, flexibility, and safety of the hose during the pumping process. The specific design and materials of these components may vary based on the manufacturer and the intended application. Here are the main components of a concrete end hose pipe:

These are heavy duty rubber hoses manufactured by “SANDHYAFLEX” that can be used for vacuum suction of sand, concrete, crushed rocks and other type of abrasive solid/semi solid material. Hoses are required to have high strength and abrasion resistance for this kind of function and hence we have come up with rubber hose for sand and gravel. Highly abrasion resistant hoses used in sand and gravel pits, dredging, mining, coal and grain handling.

The Dredging Industry, Today, Demands Higher efficiency and biffer capacity as the scale of reclamation works and dredging works has become much larger and discharge hoses, today face extremely severe service conditions.

SANDHYAFLEX Dredge Hose specially designed and compounded thicker lining compounds suitable to handle Slurry. Mud and Other types of dredge material. Reinforced with multiples piles of hi-Tensile cords suitably impregnated with Rubber Discontinues steel rings are provided to take care of suction/ crush resistance. And avoid kinking and to improve the sturdiness of the hose Abrasion resistant. Weather Resistant. Sea water resistant rubber specially compounded outer cover.

Details :

• Tube : Natural and Synthetic Rubber.
• Reinforcement : Synthetic Textile and Steel Helix Wire.
• Cover : Abrasion. Ozone, Weather and Heat Resistant Synthetic Rubber Corrugated.
• Application : For Suction and Delivery of Air Dust Grain Powder Etc.

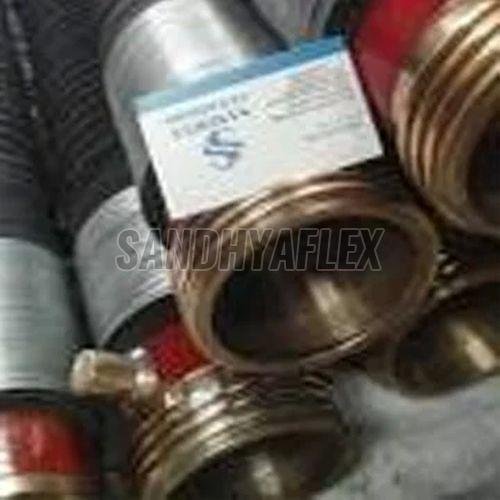

SANDHYAFLEX INDIA PVT LTD Manufacturer and Supplier of Fire Fights Rubber Suction Hose with Both end Male and Female arromoured Wire Coupling.

Size: 100mm ID x2.5Mtr Both end Male and Femael Coupling as per IS 902 Specification.Working Pressure 10.0kg/cm2.

Details :

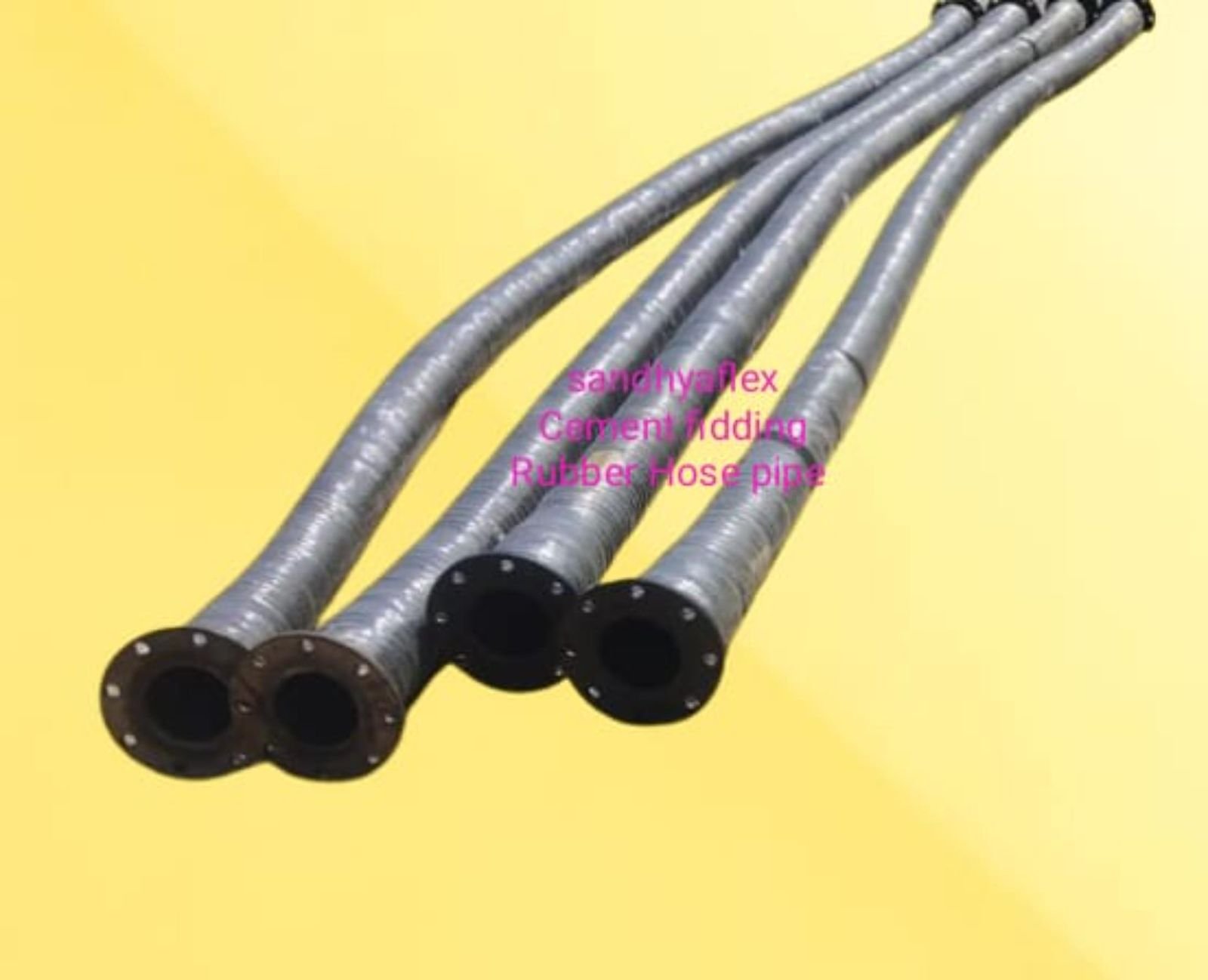

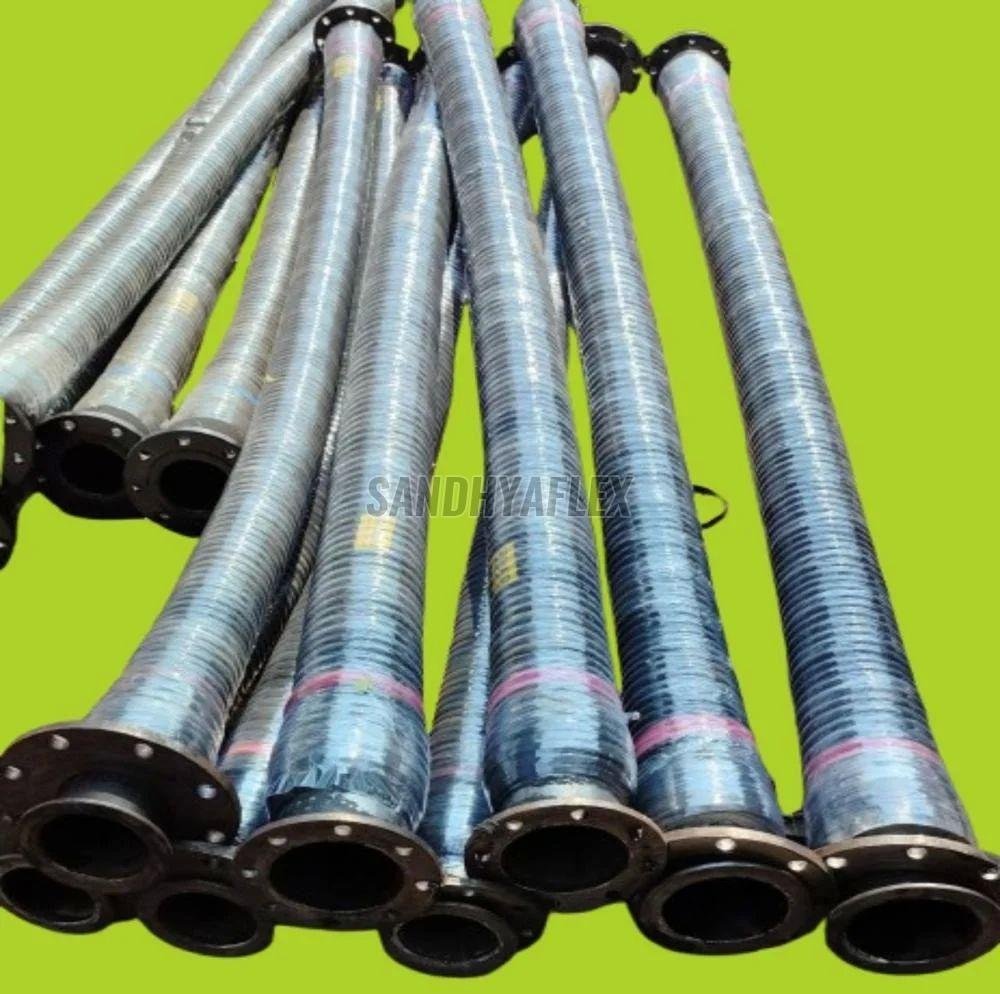

• When it comes to fly ash rubber hoses, Sandhya Flex stands out as a trusted brand, Provides high-quality fly ash rubber hose with a low investment.
• Sandhya Flex fly ash rubber hose is known as light duty, with a working pressure of 7 to 10 bars.
• Use: Only suitable for siloed and ready-mix concrete (RMC) industries.
• Avoid using it in cement industries.

Application :

• Fly Ash Rubber Hose, tank, truck, Bulker loading / unloading or in-plant transfer of dry bulk, sand, lime, slurry etc., suction or discharge of abrasive materials.

Construction:

• Lining : Uniform seamless tube of natural and synthetic blend rubber compound with excellent resistance to abrasion.
• Reinforcement : Reinforcement of rubber impregnated woven textile applied on bias at approx.45 degree angle combination with galvanized steel wire
• Cover : Corrugated/plain cloth marked outer cover made from natural rubber compound with excellent weather and abrasion resistant.
• End Connections : Each Hose Length has soft ends for clamping or can be supplied with different type of nipples, flanges or fittings as per requirement.
• Cover: W.P. of 1.0 Mpa & Min. B.P. of 3.0Mpa.
• W.P. of 1.5 Mpa & Min. B.P. of 4.5Mpa .

Oil Suction Rubber Hose Application: For dock and offshore operation of petroleum products containing not more than 25% aromatic hydrocarbon content.

Construction-Lining: Lining : Smooth lining of suitable rubber compounds; uniform in thickness; free from air blisters & porosity; resistant to all grade of petroleum & blended products having an aromatic hydro-carbon content not more than 25%.

Plies of rubber impregnated woven textile with helically embedded G.I.wire.

Cover : Corrugated or cloth marked finish, suitable rubber compound having resistance to oil, abrasion & weather.

Sand Blasting Hose for conveying sand, shots or other abrasive materials used in ordnance factory, steel fabrication, shipyards, manufacturing workshops, heavy engineering industries, Gas cylinder manufacturing units etc.

Lining : Uniform seamless tube of natural/synthetic/blend rubber compound of high tensile strength, excellent abrasion resistance and free from air blister, porosity and other defects

Reinforcement : Plies of rubber impregnated woven textile or braiding of high strength natural/synthetic fibre.

Cover : Suitable rubber compound of cloth marked finish resistant to abrasion and weather.

Electric Bonding :; A strand of copper wire is embedded between the reinforcement plies to provide electrical continuity throughout the length of the hose

Pressures: Type 1 - W. P. 0.7 MPa & B. P. 3.5MPa. Type 2 - W. P. 1.0 MPa & B. P. 5.0MPa

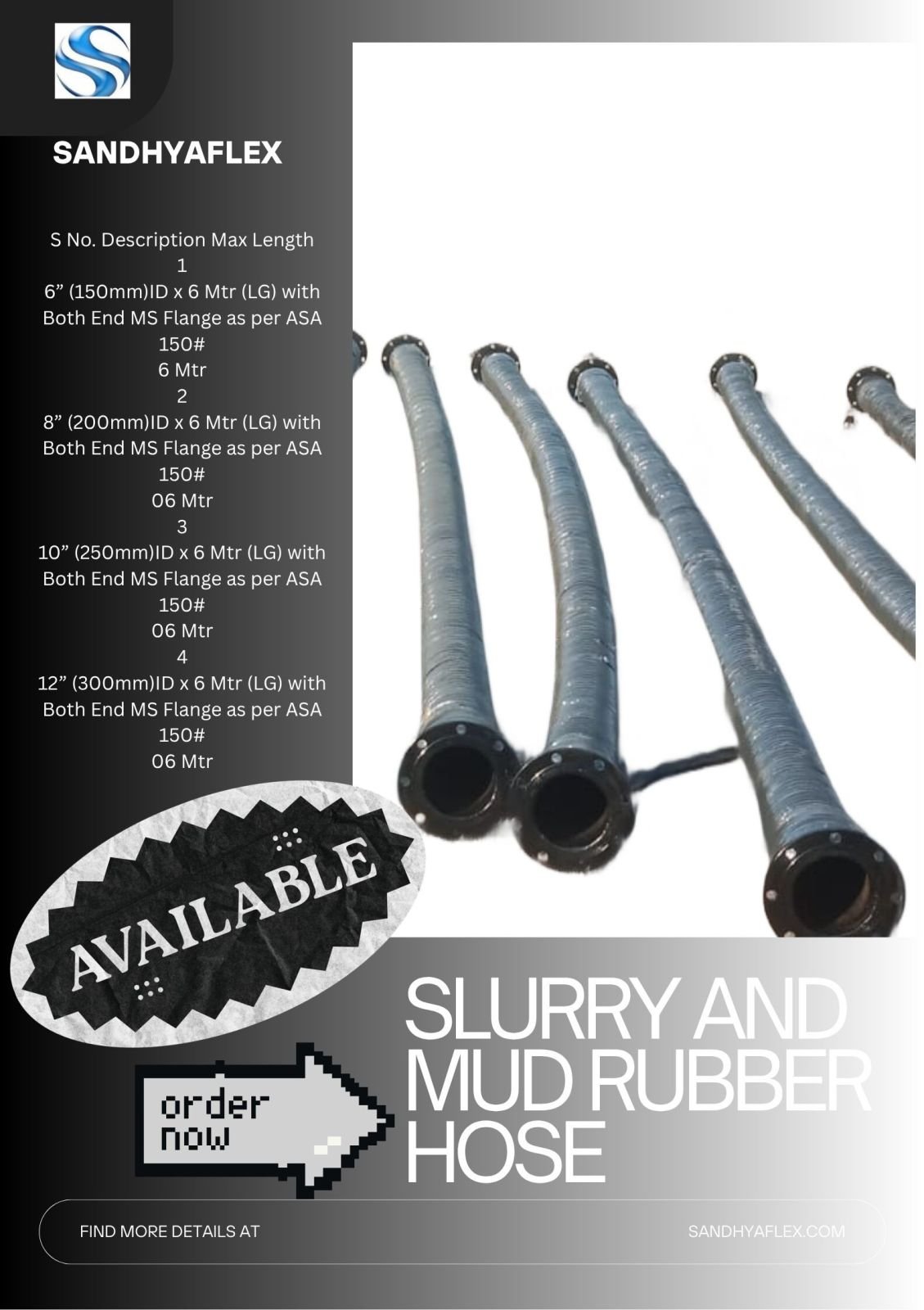

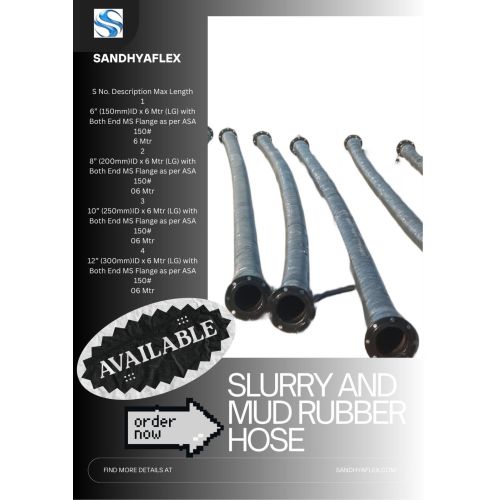

Sandhya Flex is a well-known and trustworthy manufacturer that provides excellent mud and slurry rubber hoses. Our products are highly renowned for their soft natural rubber compound composition and effective abrasion resistance. The addition of a low-resistant electrical binding wire between the reinforcing piles made electrical continuity along the entire length of the hose feasible. Additionally, these hoses offer remarkable resilience against weather and abrasion.

Rubber hoses for slurry and mud have extensive uses in a variety of industries, including building sites, irrigation projects, bridges and more. The whole range is tested rigorously to guarantee the performance and quality of the product. High-quality materials are used in the manufacturing of the hoses, which are designed to work optimally in challenging conditions. Sandhya Flex is committed to offering top-notch mud and slurry rubber hoses that satisfy the industry's demanding standards.

Application:
Sandhya Flex is a reputable and top producer of slurry and mud rubber hose, producing soft, naturally abrasion-resistant rubber compounds. To allow electrical continuity along the entire length of the slurry and mud rubber hose, a low-resistance electrical binding wire is implanted between the reinforcing plies. It is quite resilient to abrasion and weather. Among other places, it is used for grouting on building sites, irrigation projects, and bridges. Extensive testing is conducted on the spectrum to guarantee optimal quality and performance. Our rubber hose for mud and slurry has a sturdy build and excellent functionality.

Construction:

• Core : Black colour, Synthetic and natural rubber blend resistant to abrasion
• Reinforcement : High Tensile Synthetic Textile cord
• Cover : Black hue, abrasion-resistant combination of natural and synthetic rubber
• Application: For Cement/ Plaster/ Sand placement in the construction industry

Rubber Water Suctions and Discharge Hose is designed for various applications that involve the suction and discharge of waste water, mud and sewage. The hose posses very flexible structure and properties so that it can be used in adverse conditions. The material used in manufacturing of it is resistant to abrasion and unwanted material. It can be used for deflooding, suction of waste water in construction works, mines and other heavy duty operations that involve removal of mud and waste water. For dewatering and delivery purposes during deflooding, handling for waste water, sewerage and mud at maximum working pressure of 0.7, 1.0 and 1.5 MPa.

Construction :

• Lining : Natural/synthetic/blend rubber compound lining for water and abrasion resistance.
• Reinforcement : Reinforcement of rubber impregnated woven textile applied on bias at approx. 45º angle combination with galvanized steel wire.
• Cover : Corrugated cloth marked finish outer cover made from natural rubber compound resistance to water, sunlight, UV rays, ozone, abrasion etc.
• End Connections : Each hose length has soft ends for Clamping or can be supplied with built in nipple and flanges on request.

Pressures :

• W.P. of 0.7 MPa & min. B.P. of 2.1 MPa.
• W.P. of 1.0 MPa & min. B.P. of 3.0 MPa.
• W.P. of 1.5 MPa & min. B.P. of 4.5 MPa.
