| Business Type | Manufacturer, Exporter, Supplier |
| Color | Green |
| Country of Origin | India |
| Usage | Carrying Power Cables In Glass Works, Electrical Furnaces, Servicing In Iron & Steel Industries For Protection From Exposure To High Temperature, Current Leakage, Radiation From Steel Furnace, Open Flame And Splashes Of Hot Metal,Protection From High Temp |
| Click to view more | |
Product Details
Material
Natural/Synthetic/Blend Rubber Compound,Natural/Synthetic Rubberized Woven Textile Fabric,Synthetic Rubber Compound With Or Without Asbestos Outer
Construction
Smooth, Non Conductive, Natural/synthetic/blend Rubber Compound,Natural/synthetic Rubberized Woven Textile Fabric,Oil, Heat And Electrical Resistant Synthetic Rubber Compound With Or Without Asbestos Outer
Temperature Resistance
High Temperature Resistance
Electric Conductivity
Non-conductive

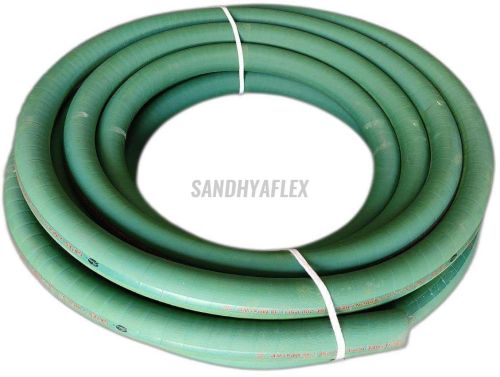

Carbon Free Rubber Hose Application: For carrying power cables in glass works, electrical furnaces, servicing in iron & steel industries for protection from exposure to high temperature, current leakage, radiation from steel furnace, open flame and splashes of hot metal.
- Construction : Lining : Smooth, non conductive, natural / synthetic/blend rubber compound.
- Reinforcement : Natural/synthetic rubberized woven textile fabric.
- Cover : Oil, heat and electrical resistant synthetic rubber compound with or without asbestos outer
Specification
| Nom. Bore in (mm) | Tolerance on Nom. bore (mm) | W.( Kg. /.P c.m2 ) | P.P. ( Kg. / cm2 ) | B.P. ( Kg. / cm2 ) |
| 12 | ± 0.75 | 10 | 20 | 40 |
| 16 | ± 0.75 | 10 | 20 | 40 |
| 20 | ± 0.75 | 10 | 20 | 40 |
| 25 | ±1.25 | 10 | 20 | 40 |
| 28 | ±1.25 | 10 | 20 | 40 |
| 31.05 | ±1.25 | 10 | 20 | 40 |
| 35 | ±1.50 | 10 | 20 | 40 |
| 38 | ±1.50 | 10 | 20 | 40 |
| 56 | ±2.00 | 10 | 20 | 40 |
| 60 | ±2.00 | 10 | 20 | 40 |
| 63 | ±2.00 | 10 | 20 | 40 |
| 70 | ±2.00 | 10 | 20 | 40 |
| 75 | ±2.00 | 10 | 20 | 40 |
| 100 | ±2.50 | 10 | 20 | 40 |
| 150 | ±3.00 | 10 | 20 | 40 |
