| Business Type | Manufacturer, Exporter, Supplier |
| Size | 2,2.5 and 3mm |
| Color | Black and Blue |
| Usage | ### Insulating Mat An **Insulating Mat** is a rubber or polymer mat used to provide **electrical in |
| Click to view more | |
Product Details
Type
Class A, b and C
Brand Name
SNDHYAFLEX
Material
PVC
Thickness
2mmx2.5mm and 3mm
Storage Type
### Storage of Insulating Mat Proper storage is important to maintain the **electrical insulation,
Country of Origin
India
Base Material
Vulcanized Natural Rubber Compound
Electrical Safety Function
Protects Workers From Electrical Shock Hazards
Voltage Rating
Suitable For Systems Up To 66 KV AC And 240 V DC
Thickness Range
6 Mm To 25 Mm
Surface Design
Chequered Or Fluted Anti-slip Surface
Test Certification
Manufacturer Test Certificate Supplied With Each Batch
Standard size
1 Meter X 2 Meter Sheets
Product Code
IM
Port
mumbai
Payment Terms
L/C
Delivery Time
7 to 15 days

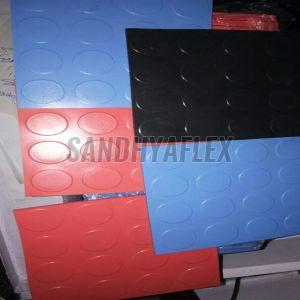

SANDHYAFLEX INDIA PVT LTD is a leading manufacturer and supplier electrical rubber mats in accordance with IS 5424:1969. We offer high-quality rubber mat for electrical purposes and is highly recommended for safeguarding the workers against electrical hazards. Also, the electrical rubber mats are highly economical and best for general use alongside. Moreover, we recommend the use of insulated rubber mats according to the Indian standard IS 15652:2006 for electrical insulation.
The material used for manufacturing the insulating rubber mats at SANDHYAFLEX INDIA PVT LTD is made from natural rubber providing it with excellent resistance and mechanical properties. The door mats available in a thickness from 6mm to 25mm having a standard size of 1M by 2M having a chequered or fluted design. Also, provide a manufacturer's test certificate with the supply.
At SANDHYAFLEX INDIA PVT LTD, insulating rubber Mats are precisely designed to be used as floor covering to protect the workers on AC and DC installations having system voltages up to 66kV and 240V DC. These are as per the Bureau of Indian Standards IS15652:2006 superseding the previous IS 5424 of 1969.
SANDHYAFLEX INDIA PVT LTD ensure the manufacturing of electrical resistance insulation mats from vulcanized rubber compounds which are free from fabric insertions and fibrous material. Also, the mats come with a guarantee of 18 months from the date of dispatch or 12 months from the date of usage, whichever is earlier. In case of failure, the scope of warranty is limited to replacement or repairs only.
Specification
| Sr No. | Test | Unit | Specification and Testing Method | Specimens |
| 1 | Hardness | IRHD | IS: 3400 (Part II) Cl.5.1.2.2 | 4.0mm (min ) thickness of Test specimen |
| 2 | Tensile Strength | MPa | IS:3400 ( Part I) | Thick- 2.0 +.0.20mm |
| 3 | Elongation at Break | % | Table 1 Type -1 | Width 6.0 + 0.40mm Bench Mark-25..0mm (max) |
| 4 | Adhesion Strength (Metal to Rubber | KN/M | IS:3400 ( Part XIV) Cl.3.3 | Length -125mm Width-25mm Width-25mm 1 g (min) |
| 5 | Ash Content | % | IS:3400 (Part XXII) | 1 g (min) |
| 6 | Polymer Identification | Chemically | Cl. A-8.3.1 IS | |
| 7 | Percentage of Polymers | % | IS | 0.5 g (min) |
| 8 | Compression Set | % | IS: 3400 (Part X) Cl. 5.1 | Thick -12.5 + 0.50mm |
| 9 | Elastic Modulus | MPa | IRC 83 (Part II) | Dia-29 + 0.50mm 2 Nos from Finish |
| 10 | Shear Modulus | MPa | 1987, UIC 772 -2R | Product |
| 11 | Ultimate Compression Strength | MPa | and MORTH | One Specimen size of 100x200mm (Cutting Piece from Finish product.) |
| 12 | Stripping Strength (Adhesion Strength) | MPa | Two Specimen size of 100x 100mm (Cutting from Finish Product) | |
| 13 | 5MPa and 15 MPa Deflection Test | MPa | IRC 83 (Part II) 1987, and MORTH | 100% on finish Product. |

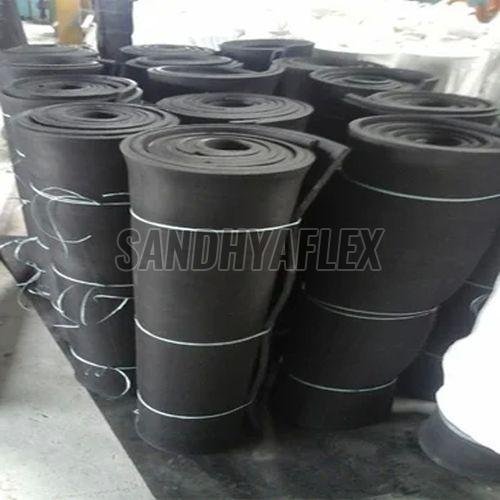

Looking for "Electrical Rubber Mat" ?
