| Business Type | Manufacturer, Exporter, Supplier |
| Application | Irrigation Project |
| Thickness | 8 Mm |
| Size | 500 Meter |
| Click to view more | |

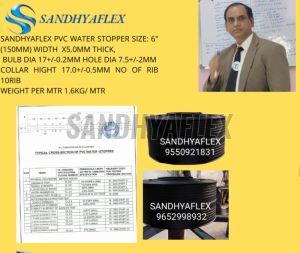

Product Details
Brand Name
SANDHYAFLEX
Material
Pvc
Width
225mm
Number Of Layer
Singal Layer
I Deal In
New Only
Product Code
PVC Water Stopper
Port
Mumbai
Payment Terms
D/A
Delivery Time
2-4days
Packaging Details
SANDHYAFLEX Fly Ash Rubber Hose / Cement Feeding Rubber hose / Bulker Unloading Rubber Hose / / Bulker Air Rubber Hose
Working Pressure 10bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr Fix Flange per side Swivel Flange per side SS Flange per side
1 3 76 4Kg 12kg 1200 900 1200 2700
2 4 102 5kg 14kg 1590 1100 1500 3300
3 5 127 7Kg 15 kg 2010 1200 1600 3600
4 6 152.4 9kg 19kg 2900 1425 1925 4300
SANDHYAFLEX Water Suction and Discharge Rubber Hose
Working Pressure 10bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr Fix Flange per side Swivel Flange per side SS Flange per side
1 3 76 4Kg 12kg 960 900 1200 2700
2 4 102 5kg 14kg 1410 1100 1500 3300
3 5 127 7Kg 15 kg 1830 1200 1600 3600
4 6 152.4 9kg 19kg 2520 1425 1925 4300
5 8 200 12kg 37kg 3900 2800 3300 8400
8 10 250 17kg 41kg 5460 3800 4600 11500
9 12 300 21kg 45kg 7800 4750 5750 14500
10 14 350 11400 6500 7500 19500
11 16 400 14400 8000 9000 24000
SANDHYAFLEX Slurry Rubber hose /Mining Rubber Hose/Mud Rubber Hose/ Dewatering Rubber Hose
Working Pressure 10bar and 25Bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr WP 10Bar Rate/Mtr WP 25 Bar Fix Flange per side Swivel Flange per side SS Flange per side
1 6 152.4 9kg 19kg 3450 4025 1425 1925 4300
2 8 203.2 12kg 37kg 5175 6325 2800 3300 8400
3 10 254 17kg 41kg 7475 9200 3800 4600 11500
s4 12 304.8 21kg 45kg 10925 13515 4750 5750 14500
Flange Dimension as per ASA 160# ANSI 16.5ASA 160# ANSI 16.5
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 190.5 152.4 4 19
2 4” (100mm) 229 190.5 8 19
3 5” (125mm) 254 215.9 8 22.2
4 6’(150mm) 279.4 241.3 8 22.2
5 8” (200mm) 342.9 298.4 8 22.2
6 10” (250mm) 406.9 361.9 12 25.4
7 12” (300mm) 482.6 431.8 12 25.4
8 14” (350mm) 533.4 476.2 12 28.6
s9 16”(400mm) 596.9 539.7 16 28.6
10 18” (450mm) 635 577.8 16 31.7
11 20”(500mm) 698.5 635 20 31.7
12 24”(600mm) 812.8 749.3 20 34.9
Flange Dimension as per Table D
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 184 146 4 16
2 4” (100mm) 216 178 8 16
3 5” (125mm) 254 210 8 16
4 6’(150mm) 279 235 8 19
Flange Dimension as per Table E
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 184 146 4 16
2 4” (100mm) 216 178 8 16
3 5” (125mm) 254 210 8 16
4 6’(150mm) 279 235 8 19
Export Packing Date 01.01.2025
Dimension in CBM
Rubber Hose
Color Block
S No Size ID of
Rubber Hose Rubber Hose
Weight/mtrapprox Flange with Nipple Weight
01 Set Flange OD as per ASA 150# Length 6Mtr Width Flagge OD Height Flange OD CBM Weight/6mtr Hose in Kg
1 3” (75mm) 4kg 12 kg 190.5mm 6 0.191 0.191 0.219 36kg
2 4”(100mm) 5kg 13kg 229mm 6 0.229 0.229 0.315 43kg
3 5” (125mm) 7kg 14kg 254mm 6 0.254 0.254 0.387 56kg
4 6” (150mm) 9kg 19 kg 279.4mm 6 0.280 0.280 0.471 73kg
5 8”(200mm) 12kg 37kg 342.9 6 0.243 0.243 0.704 109kg
6 10” (250mm) 16kg 41 kg 406.9 6 0.407 0.407 0.994 137kg
7 12(300mm) 20Kg 45kg 482.6 6 0.483 0.483 1.400 165kg
8 14” ( 350mm) 6 0.534 0.534 1.709
9 16” (400mm) 6 0.597 0.597 2.1384
10 18” (450mm) 6 0.635 0.635 2.419
11 20” (500mm) 6 0.699 0.699 2.932
12 24”(600mm) 6 0.813 0.813 3.968
Working Pressure 10bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr Fix Flange per side Swivel Flange per side SS Flange per side
1 3 76 4Kg 12kg 1200 900 1200 2700
2 4 102 5kg 14kg 1590 1100 1500 3300
3 5 127 7Kg 15 kg 2010 1200 1600 3600
4 6 152.4 9kg 19kg 2900 1425 1925 4300
SANDHYAFLEX Water Suction and Discharge Rubber Hose
Working Pressure 10bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr Fix Flange per side Swivel Flange per side SS Flange per side
1 3 76 4Kg 12kg 960 900 1200 2700
2 4 102 5kg 14kg 1410 1100 1500 3300
3 5 127 7Kg 15 kg 1830 1200 1600 3600
4 6 152.4 9kg 19kg 2520 1425 1925 4300
5 8 200 12kg 37kg 3900 2800 3300 8400
8 10 250 17kg 41kg 5460 3800 4600 11500
9 12 300 21kg 45kg 7800 4750 5750 14500
10 14 350 11400 6500 7500 19500
11 16 400 14400 8000 9000 24000
SANDHYAFLEX Slurry Rubber hose /Mining Rubber Hose/Mud Rubber Hose/ Dewatering Rubber Hose
Working Pressure 10bar and 25Bar
S No Size Inches ID (mm) Weight of Rubber Hose perMtr Weight of Flange Rate/Mtr WP 10Bar Rate/Mtr WP 25 Bar Fix Flange per side Swivel Flange per side SS Flange per side
1 6 152.4 9kg 19kg 3450 4025 1425 1925 4300
2 8 203.2 12kg 37kg 5175 6325 2800 3300 8400
3 10 254 17kg 41kg 7475 9200 3800 4600 11500
s4 12 304.8 21kg 45kg 10925 13515 4750 5750 14500
Flange Dimension as per ASA 160# ANSI 16.5ASA 160# ANSI 16.5
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 190.5 152.4 4 19
2 4” (100mm) 229 190.5 8 19
3 5” (125mm) 254 215.9 8 22.2
4 6’(150mm) 279.4 241.3 8 22.2
5 8” (200mm) 342.9 298.4 8 22.2
6 10” (250mm) 406.9 361.9 12 25.4
7 12” (300mm) 482.6 431.8 12 25.4
8 14” (350mm) 533.4 476.2 12 28.6
s9 16”(400mm) 596.9 539.7 16 28.6
10 18” (450mm) 635 577.8 16 31.7
11 20”(500mm) 698.5 635 20 31.7
12 24”(600mm) 812.8 749.3 20 34.9
Flange Dimension as per Table D
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 184 146 4 16
2 4” (100mm) 216 178 8 16
3 5” (125mm) 254 210 8 16
4 6’(150mm) 279 235 8 19
Flange Dimension as per Table E
Sr No Size OD of Flange in mm PCD mm Nos of Hose Holes Dia in mm
1 3” (75mm) 184 146 4 16
2 4” (100mm) 216 178 8 16
3 5” (125mm) 254 210 8 16
4 6’(150mm) 279 235 8 19
Export Packing Date 01.01.2025
Dimension in CBM
Rubber Hose
Color Block
S No Size ID of
Rubber Hose Rubber Hose
Weight/mtrapprox Flange with Nipple Weight
01 Set Flange OD as per ASA 150# Length 6Mtr Width Flagge OD Height Flange OD CBM Weight/6mtr Hose in Kg
1 3” (75mm) 4kg 12 kg 190.5mm 6 0.191 0.191 0.219 36kg
2 4”(100mm) 5kg 13kg 229mm 6 0.229 0.229 0.315 43kg
3 5” (125mm) 7kg 14kg 254mm 6 0.254 0.254 0.387 56kg
4 6” (150mm) 9kg 19 kg 279.4mm 6 0.280 0.280 0.471 73kg
5 8”(200mm) 12kg 37kg 342.9 6 0.243 0.243 0.704 109kg
6 10” (250mm) 16kg 41 kg 406.9 6 0.407 0.407 0.994 137kg
7 12(300mm) 20Kg 45kg 482.6 6 0.483 0.483 1.400 165kg
8 14” ( 350mm) 6 0.534 0.534 1.709
9 16” (400mm) 6 0.597 0.597 2.1384
10 18” (450mm) 6 0.635 0.635 2.419
11 20” (500mm) 6 0.699 0.699 2.932
12 24”(600mm) 6 0.813 0.813 3.968

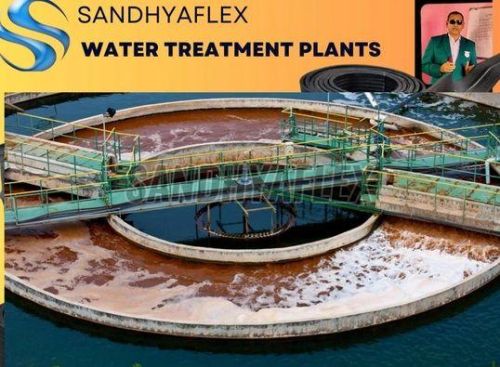

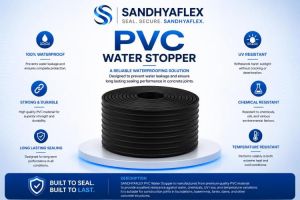

A PVC water stopper is a construction material commonly used in concrete structures to prevent the passage of water through construction joints, expansion joints, and other openings. It's typically made of high-quality polyvinyl chloride (PVC) and is used to ensure a waterproof seal in various applications, including basements, tunnels, reservoirs, swimming pools, and water treatment plants.
Key Features of PVC Water Stoppers:- Waterproofing: The main function is to prevent water from seeping through joints in concrete structures.
- Durability: Resistant to chemical attack, corrosion, and degradation over time, making it ideal for long-lasting applications.
- Flexibility: PVC water stoppers are flexible and can expand or contract to accommodate joint movements.
- Ease of Installation: They are relatively easy to install during the construction phase, as they can be embedded in the concrete joints.
- Variety of Designs: Available in different shapes and sizes to suit specific joint configurations (e.g., straight, L-shaped, or T-shaped).
- Cost-effective: PVC is relatively affordable, providing an economical solution for waterproofing needs.
- Foundation and basement walls: To prevent water ingress in subterranean structures.
- Water tanks and reservoirs: To maintain water-tightness.
- Bridge decks and tunnels: To protect against water penetration.
- Swimming pools: To ensure a durable water seal.
- Placement: It is installed in the construction joint or where two concrete surfaces meet.
- Positioning: Careful positioning within the formwork is crucial for ensuring its effectiveness.
- Sealing: After concrete is poured, the water stopper should be carefully checked to ensure there are no gaps or defects.
Overall, PVC water stoppers are a reliable and efficient solution for preventing water damage in concrete structures exposed to water or moisture.
